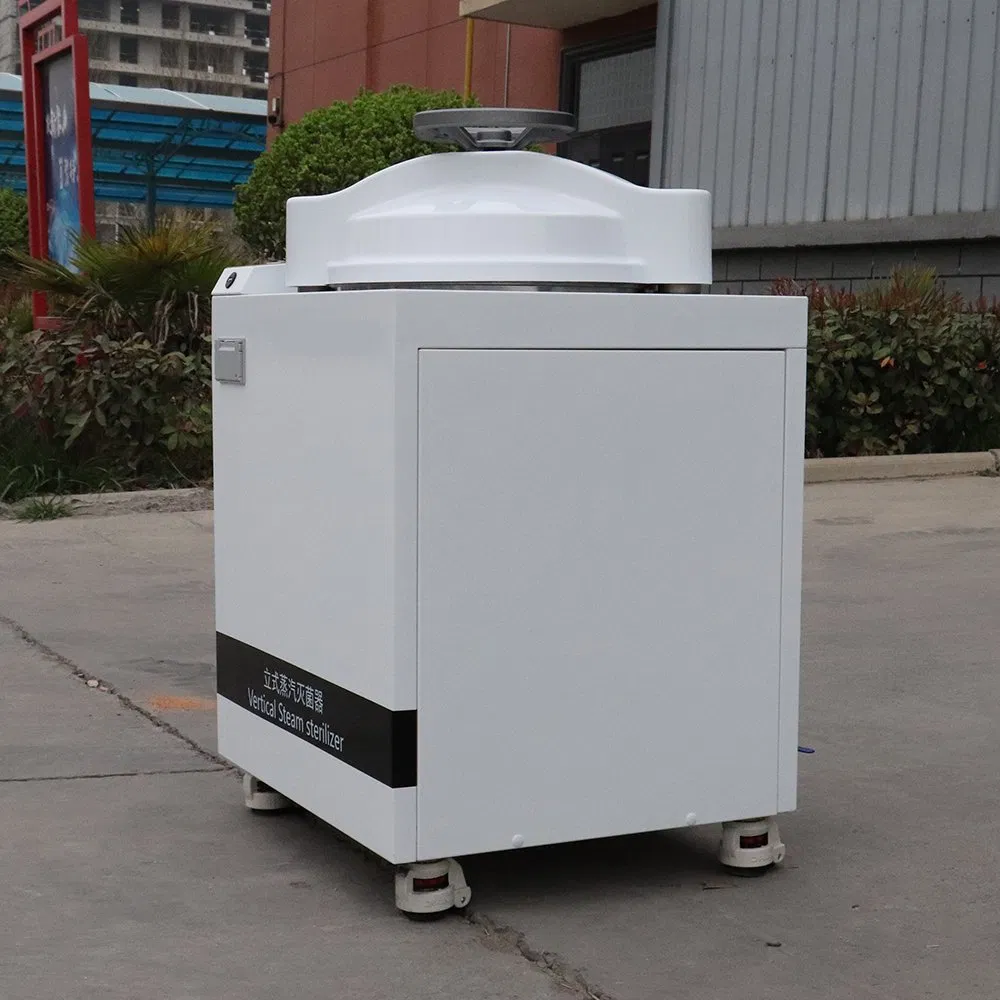

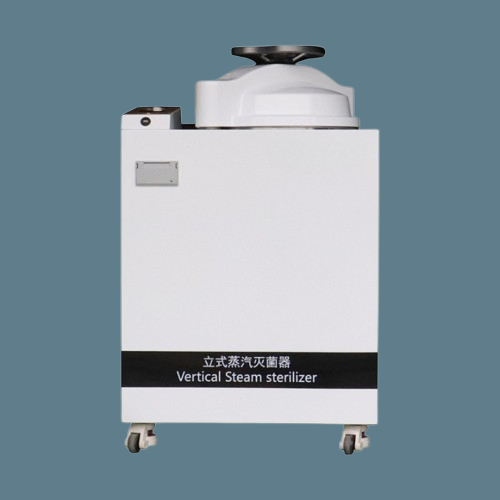

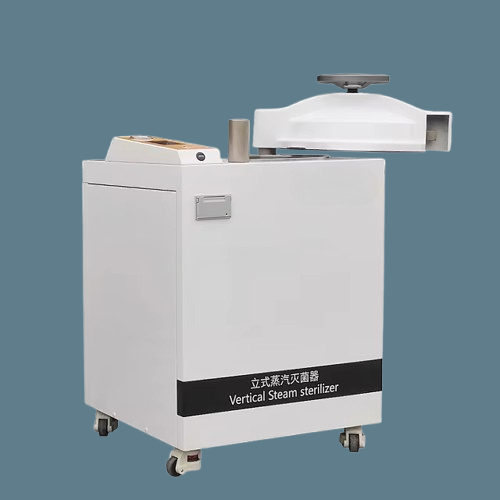

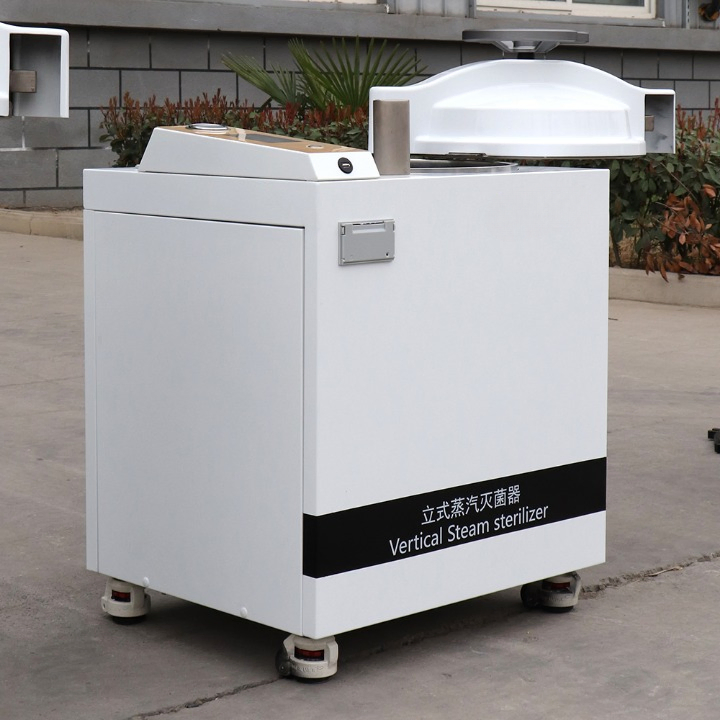

Introducing the state-of-the-art Vertical Autoclave Steam Sterilizer-Model SD-ZL, a true testament to innovation and efficiency in medical technology.
Basic Information
Certification
CE, FDA, ISO13485
LCD Display
With LCD Display
Application
Hospital Steam Sterilizer
Sterilization Objects
Liquid, Dressings, Instruments, Food
Product Description

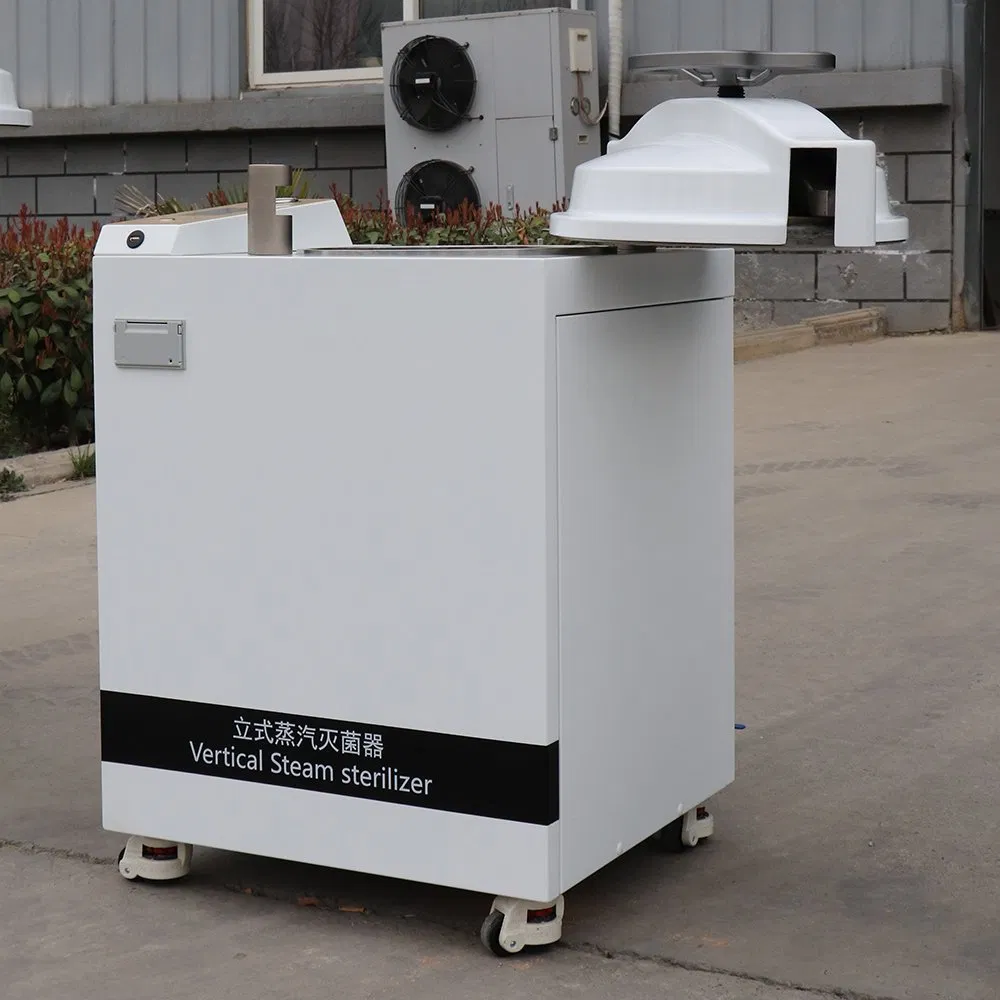

The Vertical High Pressure Steam Sterilizer stands as a pinnacle of engineering excellence, channeling the power of electric heating to generate intense, high temperature and high pressure saturated steam within a fortified chamber. This cutting-edge process skillfully expels cold air through innovative methods such as gravity displacement exhaust, seamlessly transforming the chamber into an optimal environment for sterilization.
Scope of Application
Essential for disinfection and sterilization management centers, operating rooms, endoscope facilities, and laboratories. Widely adopted across universities, research institutes, biological laboratories, clinics, and family planning service stations.

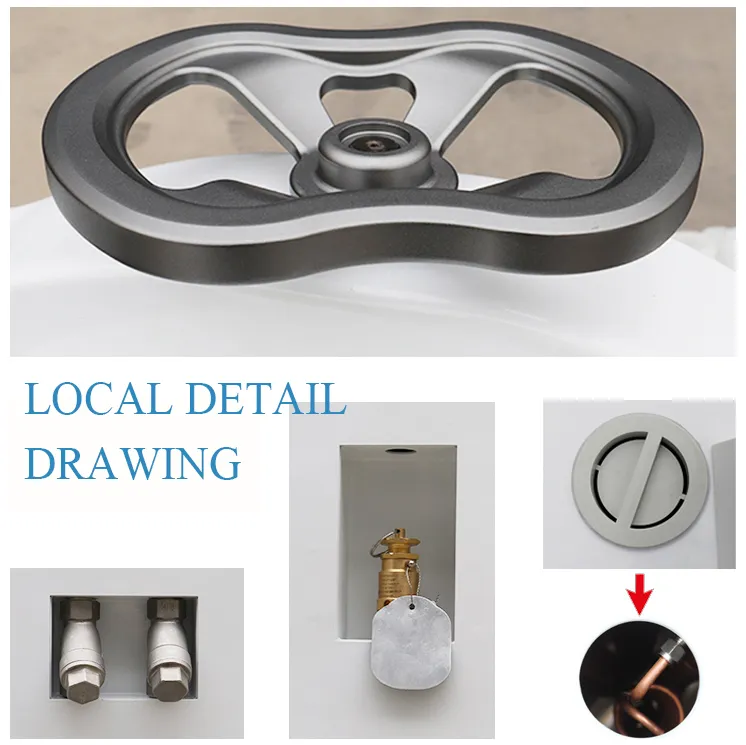

Key Features
01 Maximum Operating Pressure: Robust 0.25 MPa performance.
02 Operating Temperature: Dynamic range from 0 to 138°C.
03 Control Precision: Unmatched accuracy of ±0.5ºC.
04 Documenting: Stylus Printer for seamless record keeping.
05 Automation: Automatic internal circulation for hydration/drainage.
06 Data Management: USB Port for fast and dependable data transfers.
07 Interface: 5-Inch Colorful Touch Screen Control Panel.
08 Safety: Dual protection for dry heating and over-pressure leak equipment.
09 Maintenance: Quick-open power distribution repair window.
10 Alarm System: Acoustooptics alarming for multi-fault troubleshooting.
Technical Specifications
| Technical Data |
SD-ZL50 |
SD-ZL80 |
SD-ZL100 |
SD-ZL120 |
| Chamber Volume | 50L | 80L | 100L | 120L |
| Chamber Size (mm) | 365*667 | 365*695 | 365*860 | 386*1054 |
| Working Temp. | 121-134ºC |
| Working Pressure | 0.22Mpa |
| Timer Range | 0~99min |
| Power Supply | 220V, 50Hz |
| Overall Dim. (mm) | 570*546*990 | 610*546*1030 | 610*546*1200 | 560*640*1437 |
Packaging & Shipping
Certifications & Quality Control

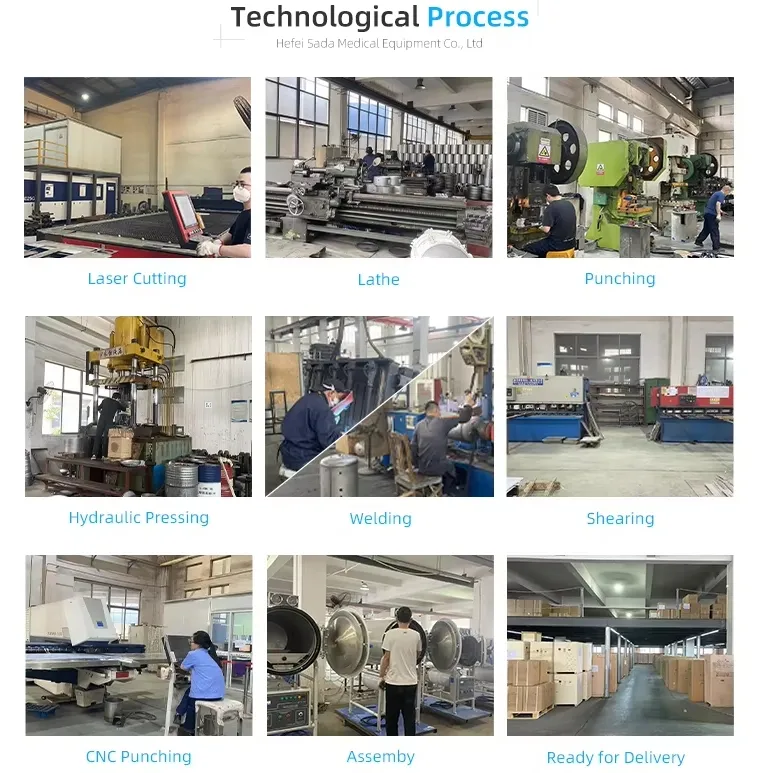

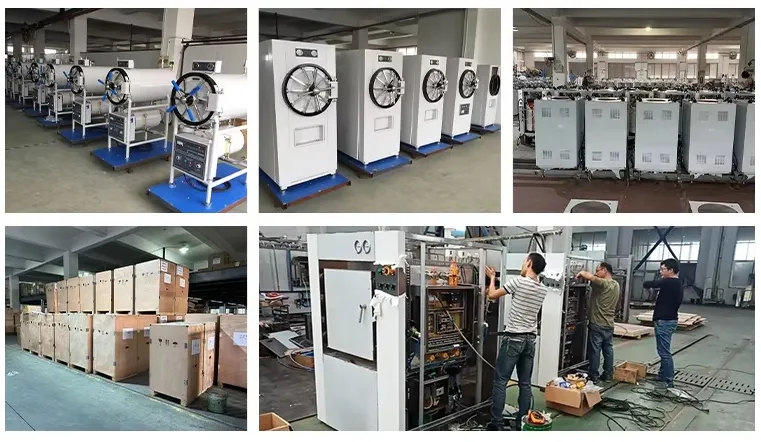

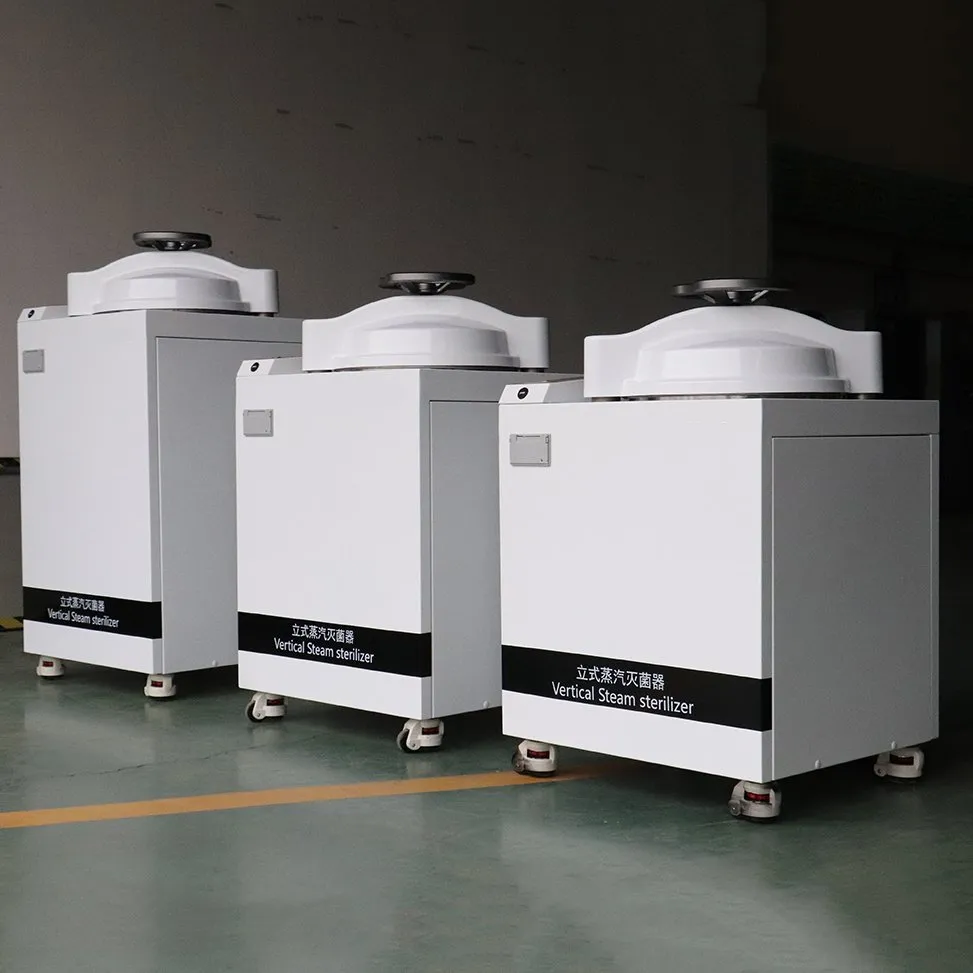

Professional Workshop
Frequently Asked Questions
What is your warranty for the products?
We offer a 2-year warranty and lifetime service for all our sterilization equipment!
How do you provide after-sales technical support?
We provide technical support through operating manuals and videos. Our engineers respond promptly via email, phone, or factory training. During the warranty, spare parts for hardware problems are free.
What are the estimated delivery times?
Express (DHL/UPS/TNT) takes 7-10 days; Air freight takes 3-10 days; Sea freight varies from 10 to 45 days depending on the destination port.
Can the equipment be customized?
Yes, we provide customization options for the control panel and voltage requirements to suit your local standards.
What is the typical production lead time?
Portable types take 5-10 days, while Table top and Vertical types usually require 10-25 days. Large scale horizontal units may take 30-35 days.
