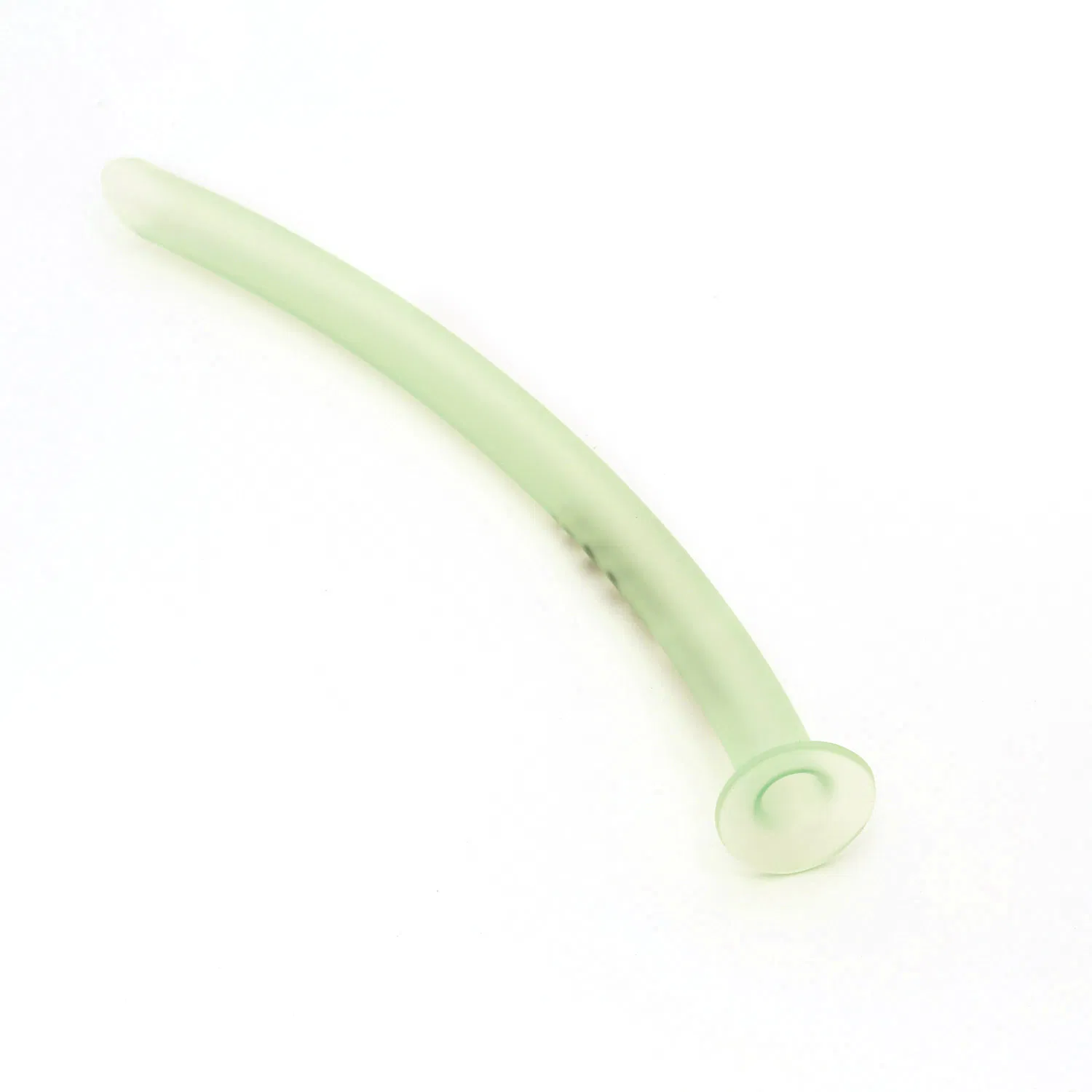

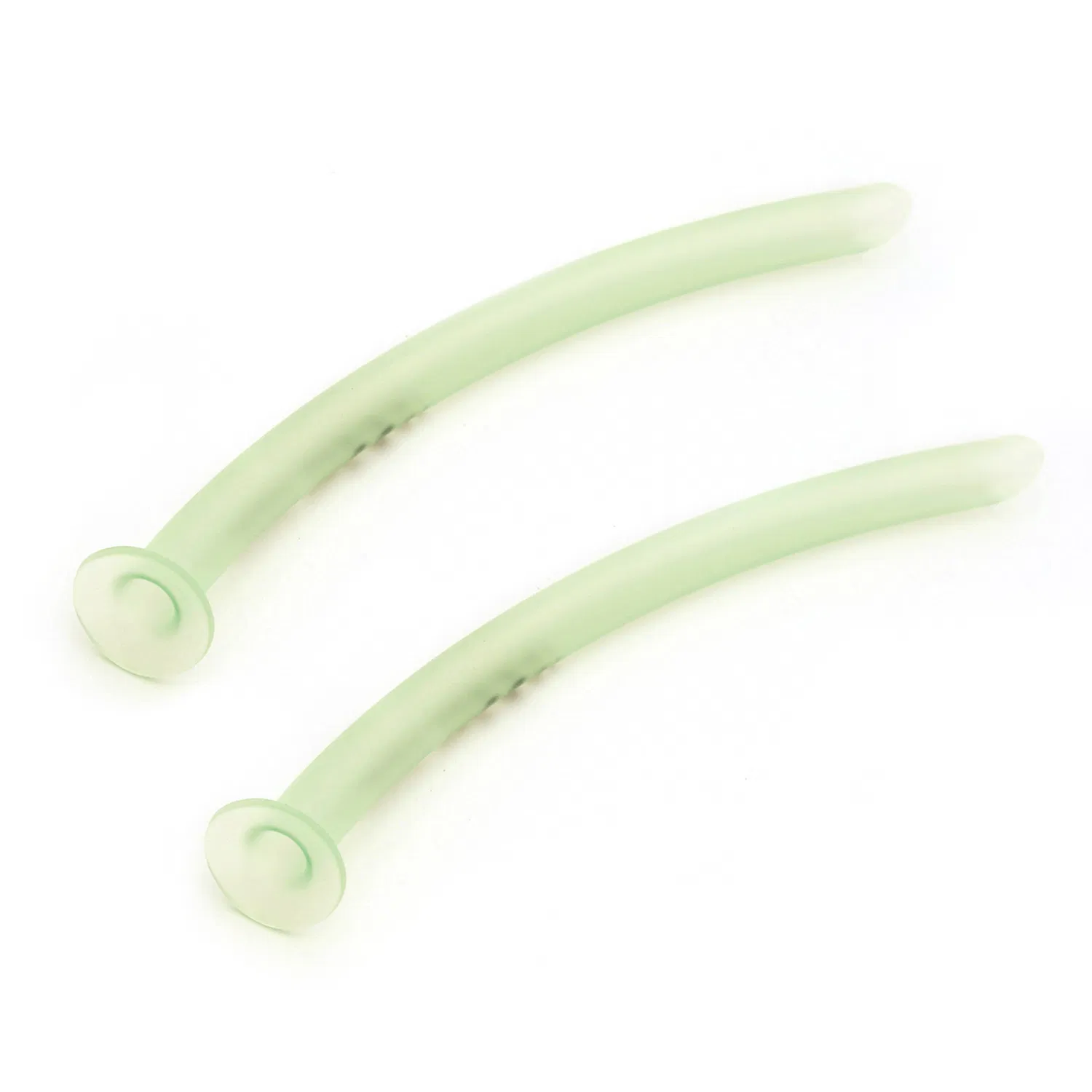

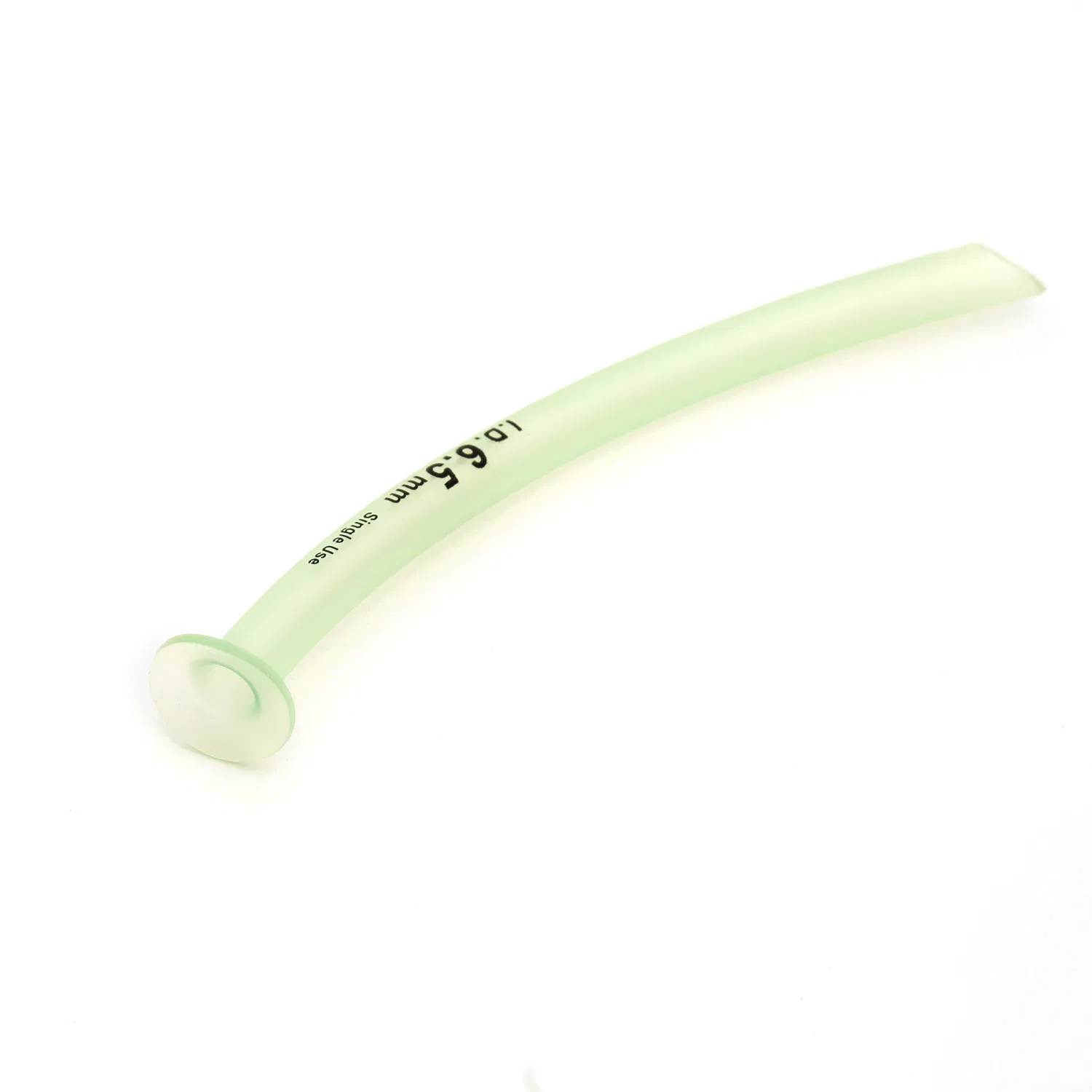

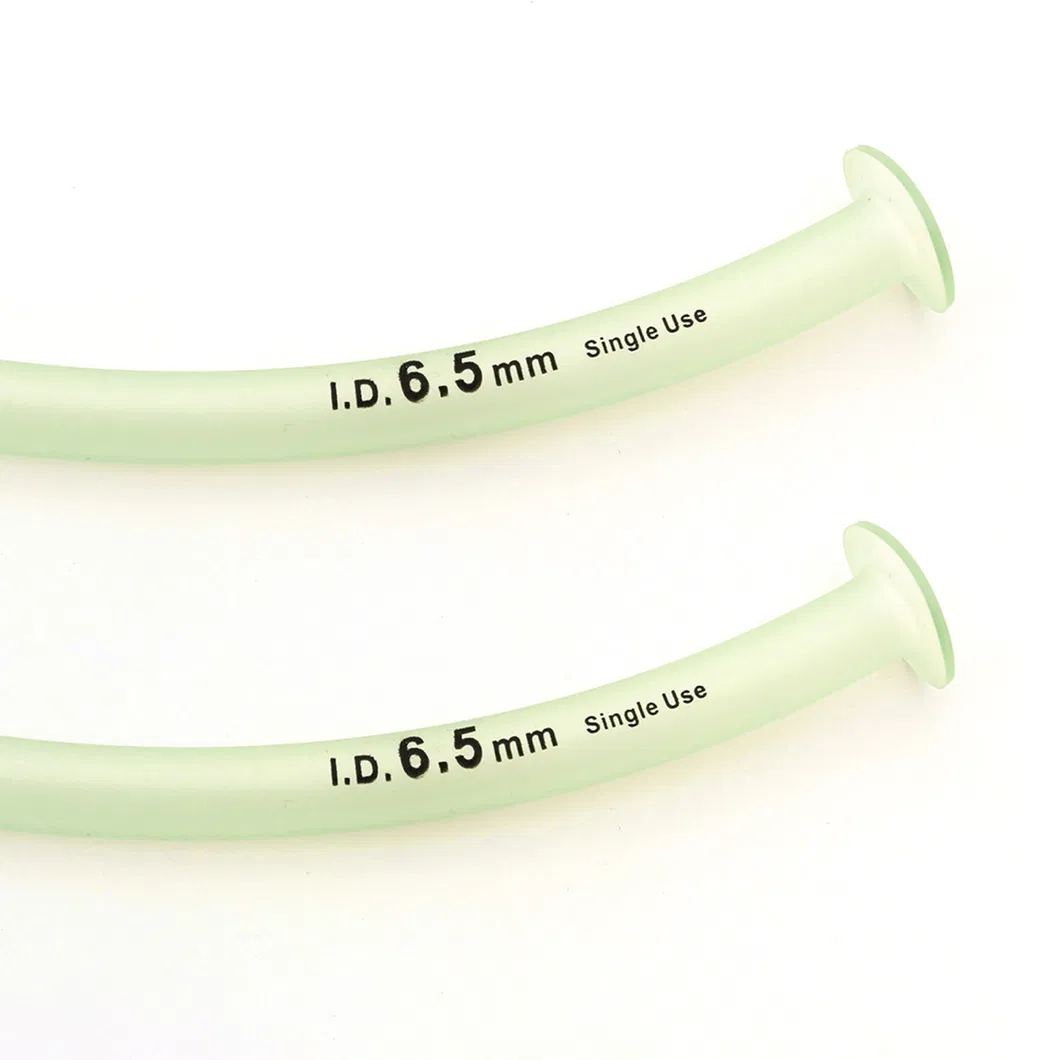

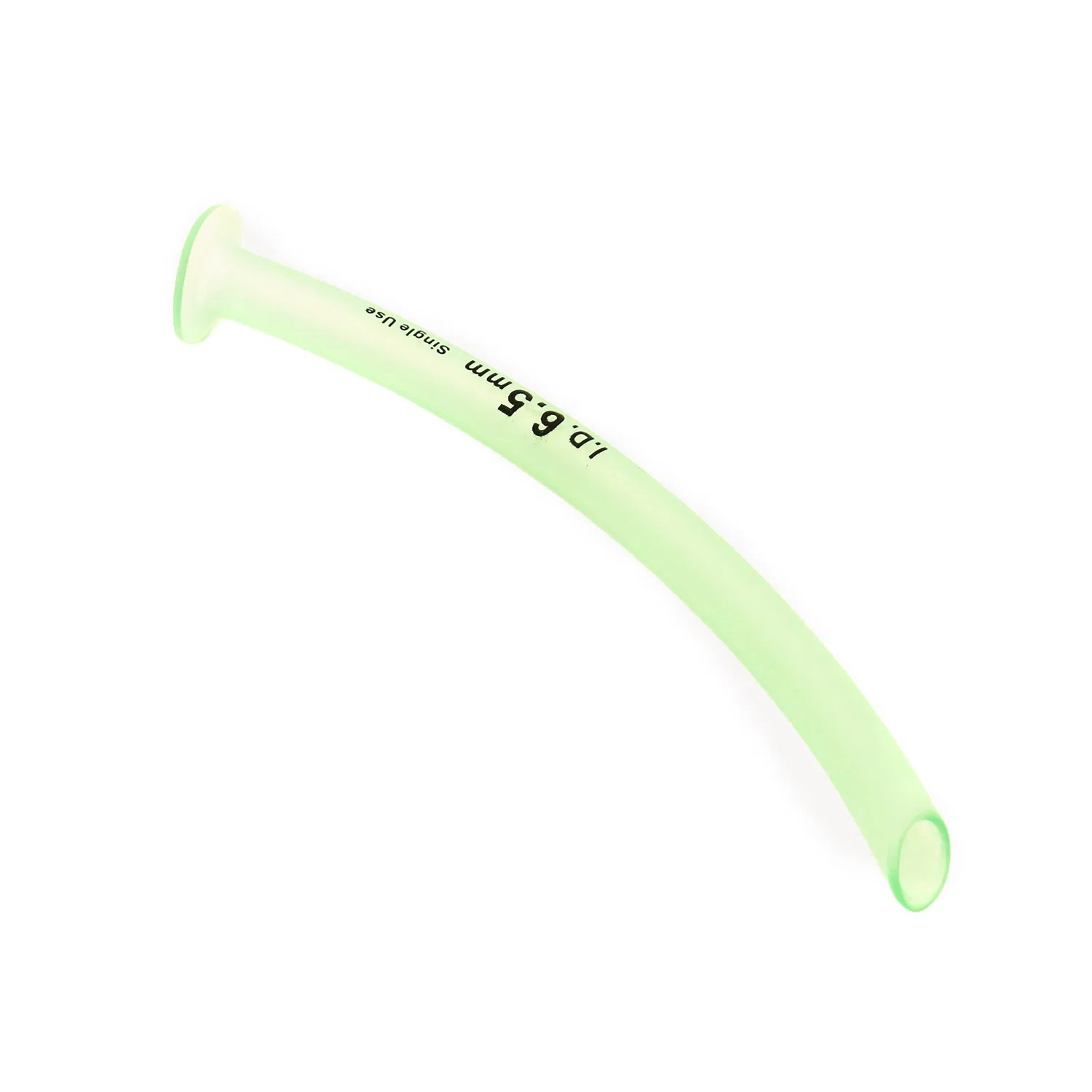

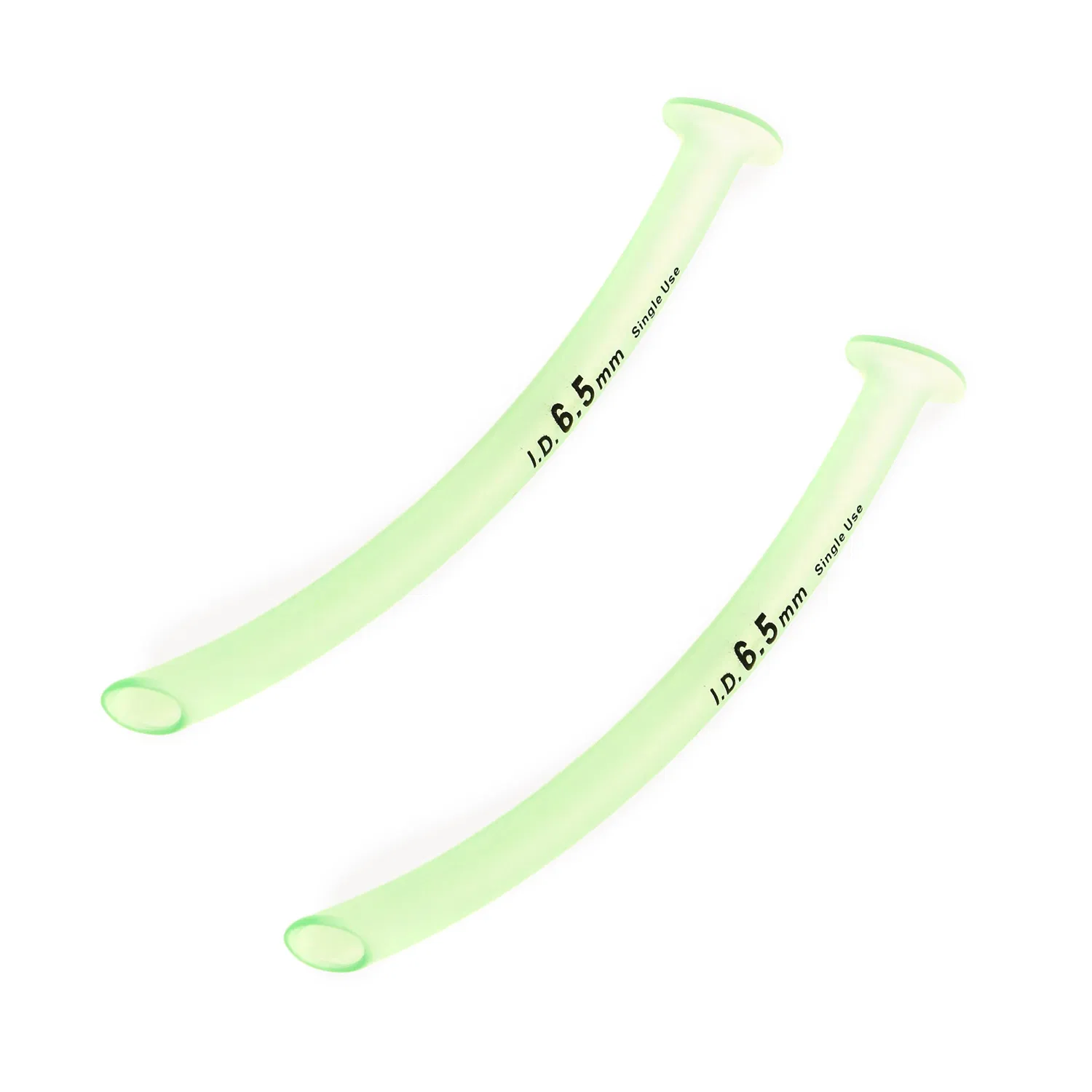

The Nasopharyngeal Airway is commonly used to secure an open airway in general anesthesia and emergency situations. It is designed for single use and is available in a variety of sizes to suit different patient needs.

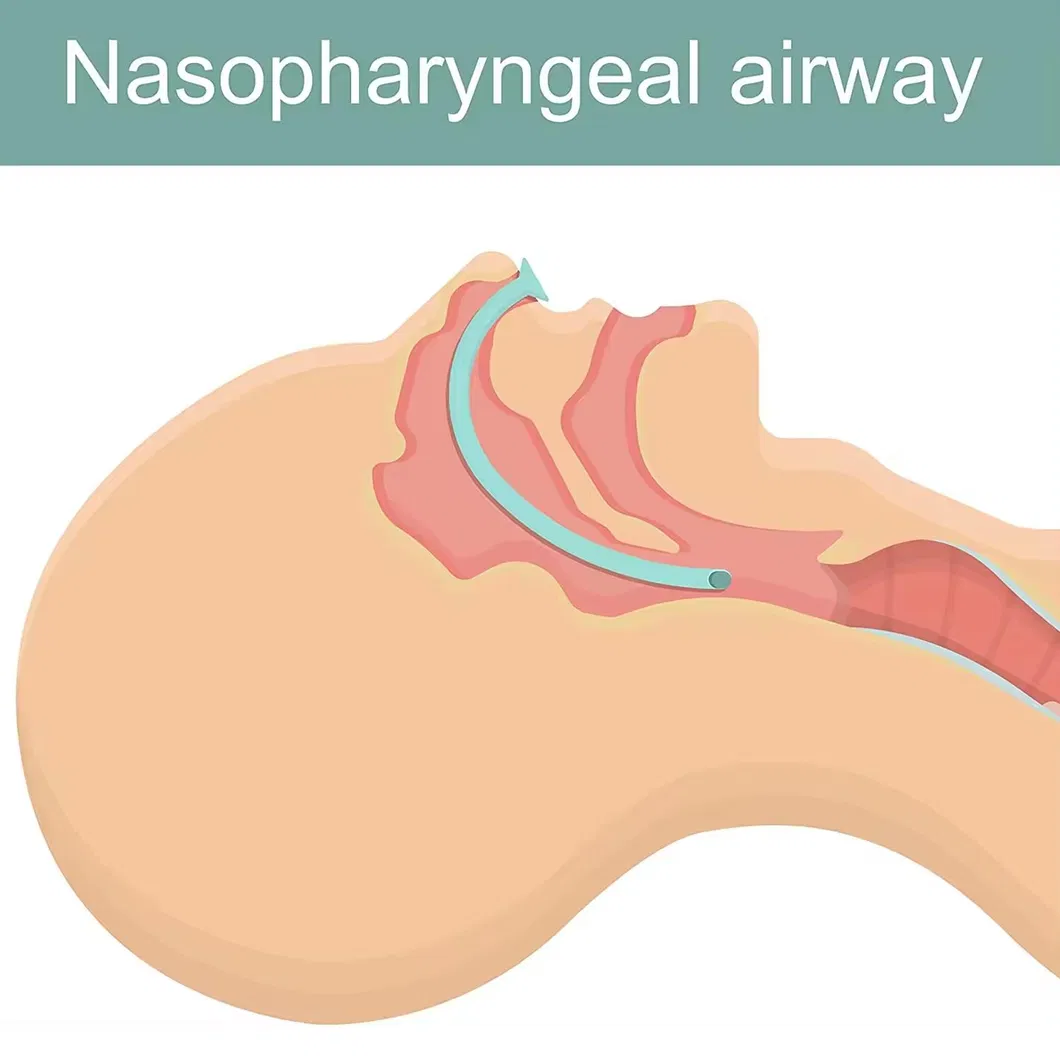

When a patient becomes unconscious, jaw muscles relax, potentially allowing the tongue to obstruct the airway. This device ensures effective airway management. The flared end prevents the device from being lost inside the patient's nose.
Constructed to be soft and flexible, it features a rounded tip for gentle insertion. It is biocompatible and latex-free for patient safety.
| Ref. No. | Size (I.D.) | O.D. | Length |
|---|---|---|---|
| KR-NA030 | 3.0mm | 4.2mm | 72mm |
| KR-NA035 | 3.5mm | 4.9mm | 85mm |
| KR-NA040 | 4.0mm | 5.5mm | 105mm |
| KR-NA045 | 4.5mm | 6.2mm | 110mm |
| KR-NA050 | 5.0mm | 6.9mm | 115mm |
| KR-NA055 | 5.5mm | 7.5mm | 125mm |
| KR-NA060 | 6.0mm | 8.2mm | 135mm |
| KR-NA065 | 6.5mm | 8.8mm | 145mm |
| KR-NA070 | 7.0mm | 9.6mm | 150mm |
| KR-NA075 | 7.5mm | 10.2mm | 160mm |
| KR-NA080 | 8.0mm | 10.9mm | 175mm |
| KR-NA085 | 8.5mm | 11.5mm | 185mm |
| KR-NA090 | 9.0mm | 12.1mm | 190mm |
Trumpet flanges can be supplied with standard 15mm fittings. Thickened flange designs are specifically engineered to prevent the tube from slipping into the nasal airway.
Equipped with slidable rings to adjust the depth of the tube, enhancing patient comfort while maintaining the desired position.
