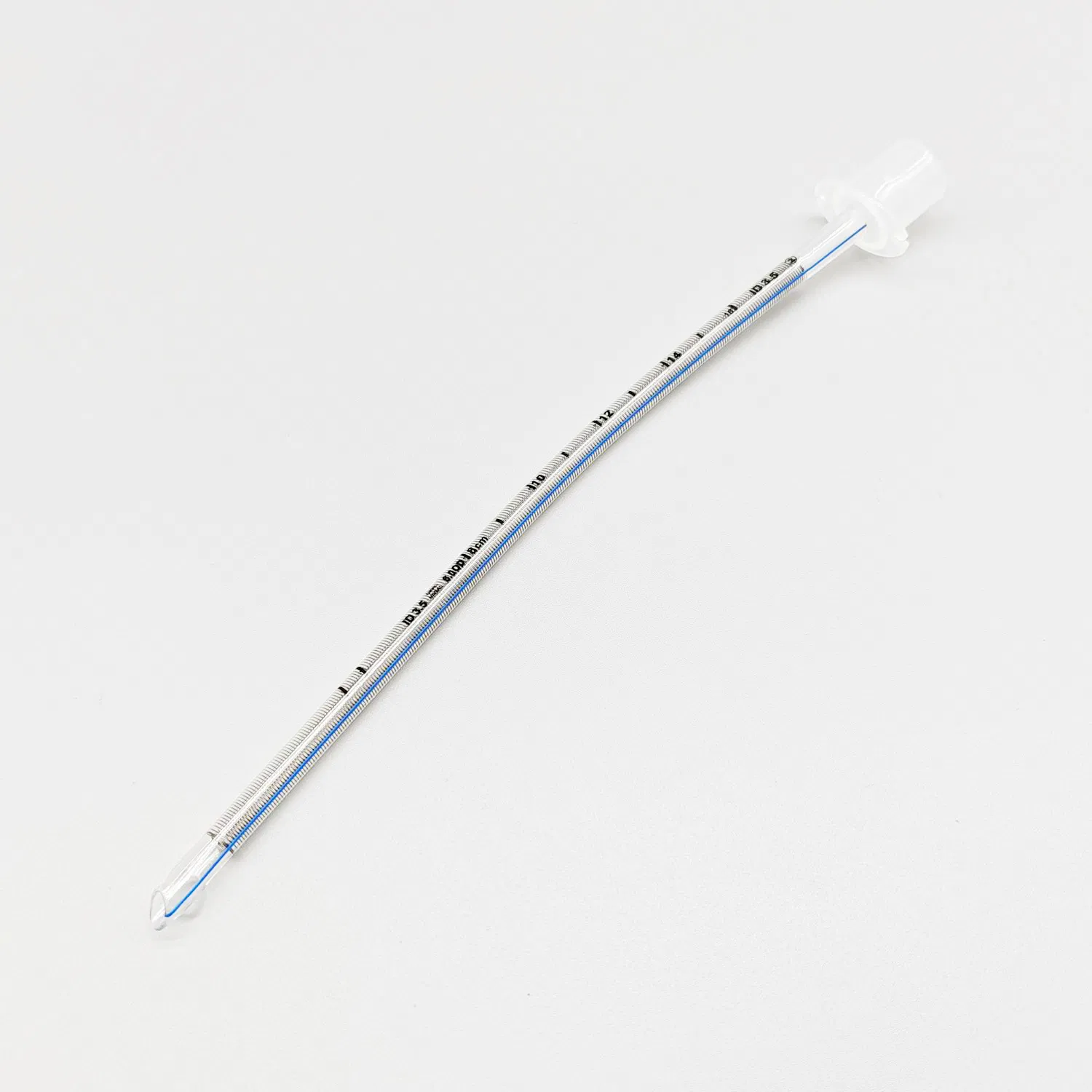

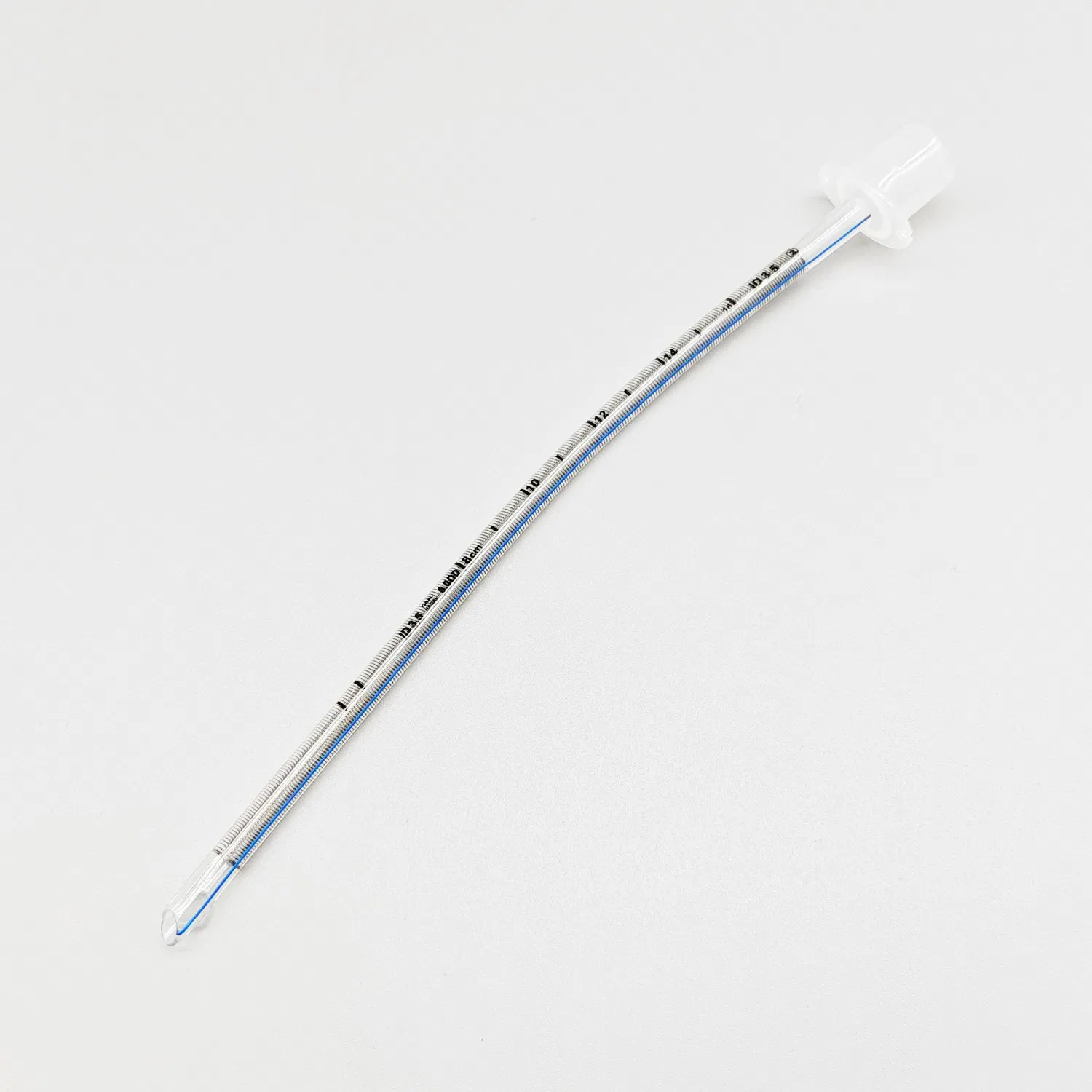

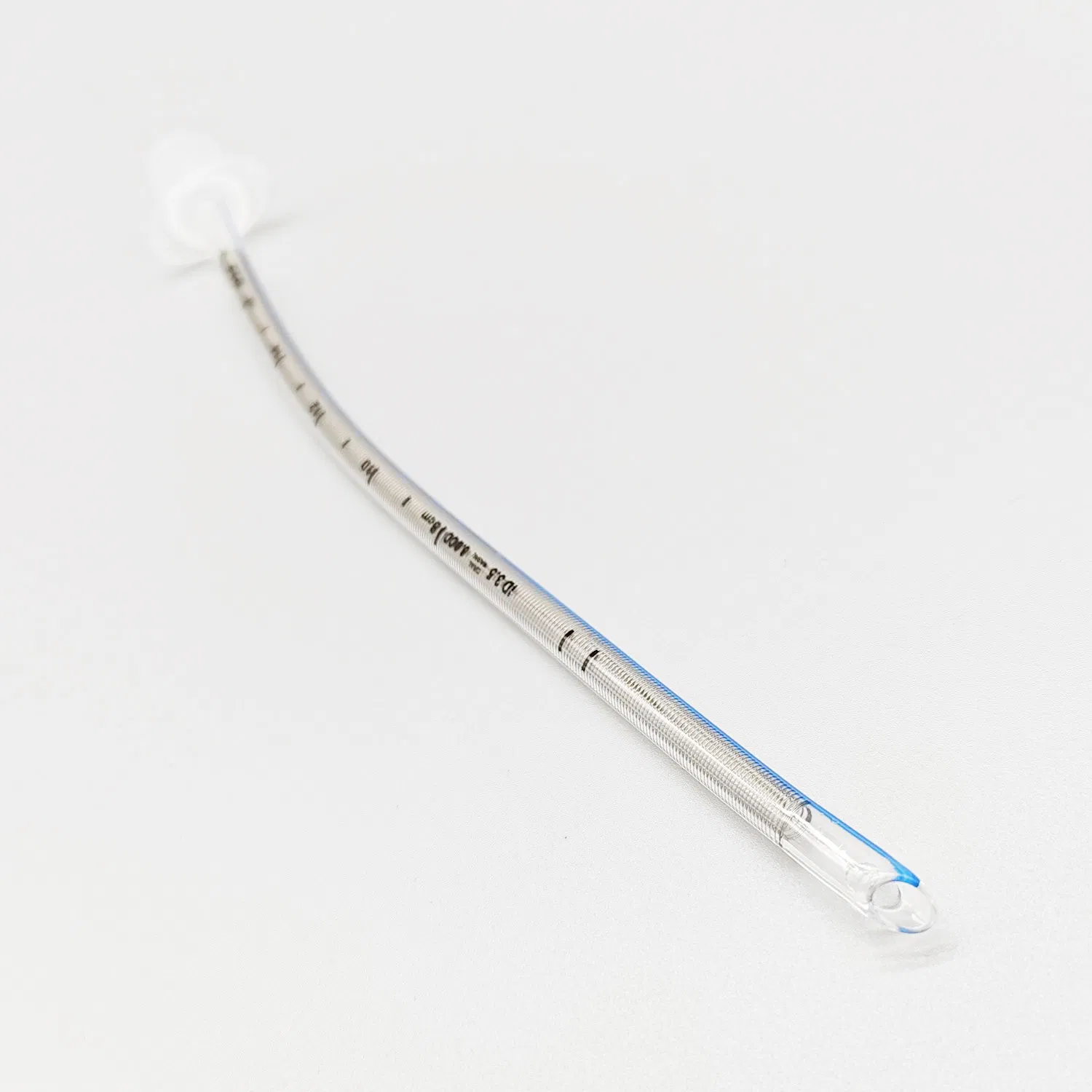

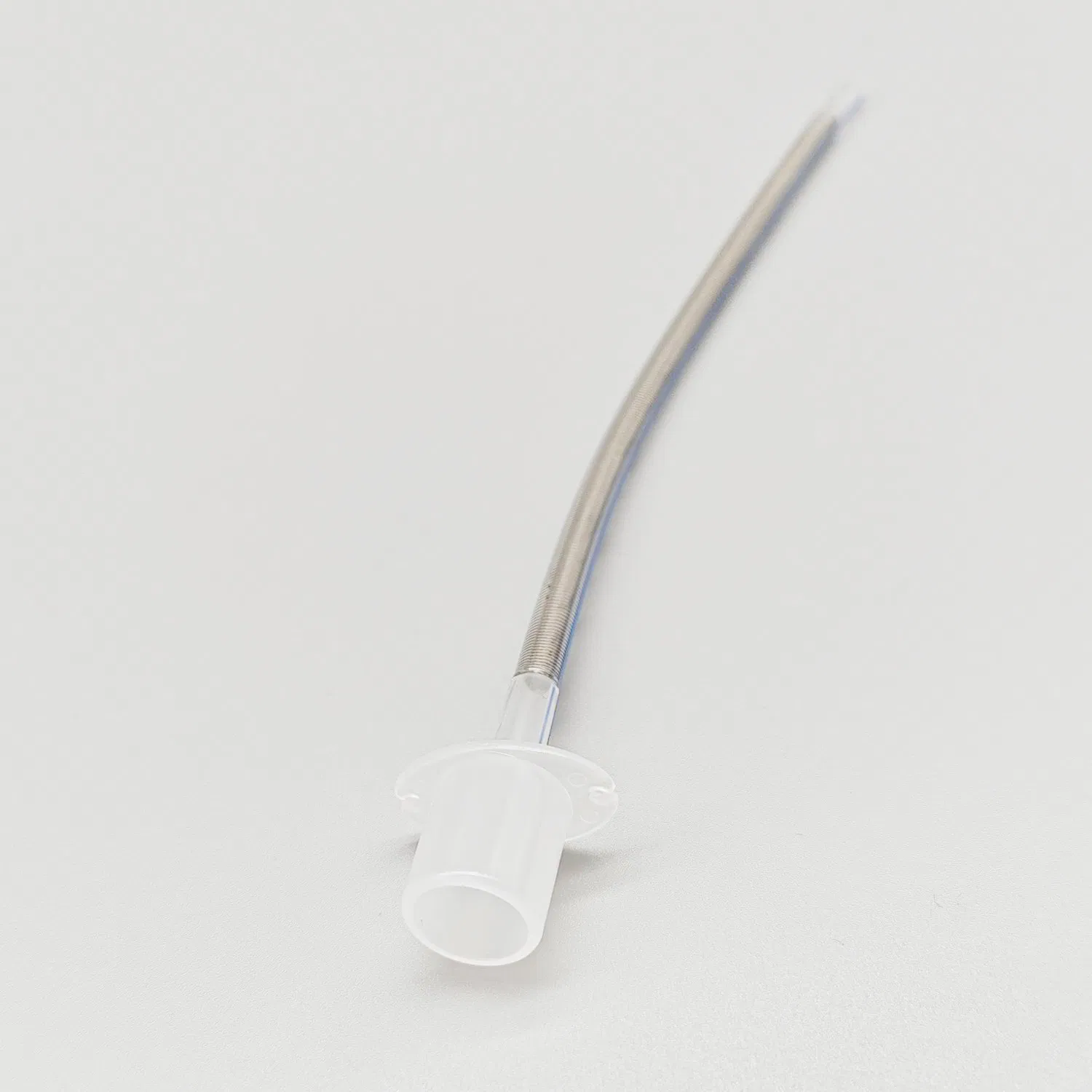

Intensive Care PVC Without Cuff Reinforced Tracheal Tube

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
Reinforced Without Cuff 3.0mm-10.0mm
Sterilization
Ethylene Oxide Sterilization
Guarantee Period
5 Years
Group
Adult, Pediatric
Product Name
Reinforced Endotracheal Tube Without Cuff
Sizes
3.0mm-10.0mm
Certificate
CE/ISO
Storage
Store in Dry, Ventilated and Cool Place.
Packing
1PC/Blister Bag, 10PCS/Box, 100PCS/CTN
HS Code
9018390000
Capacity
500000 PCS/Month
Product Description
The reinforced endotracheal tube is intended for airway management by oral or nasal intubation of the trachea during anesthesia. It is a device inserted into the trachea through the mouth or nose to facilitate breathing and it may be used where the patient's neck is likely to be moved of flexed or the patient is in the prone position so that a non-reinforced tracheal tube might become kinked.

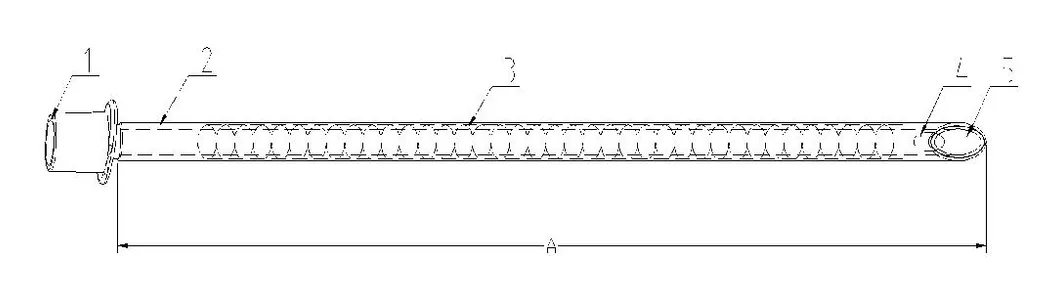

No. Component Description
1.Machine end
2.Shaft
3.Reinforced stainless steel
4.Murphy eye
5.Patient end
Reinforced Tracheal Tube Structure
Product Specification
💡 Key Features
  • Murphy eye design
  • Suitable for anesthesia and intensive care
  • X-ray opaque line for positioning verification
Specifications Inside Diameter (mm) Outside Diameter (mm) Min Length (mm)
Reinforced Uncuffed 3.5mm3.56.0180
Reinforced Uncuffed 4.0mm4.06.7200
Reinforced Uncuffed 4.5mm4.57.3220
Reinforced Uncuffed 5.0mm5.07.7240
Reinforced Uncuffed 5.5mm5.58.3270
Reinforced Uncuffed 6.0mm6.09.0280
Reinforced Uncuffed 6.5mm6.59.7290
Reinforced Uncuffed 7.0mm7.010.3300
Reinforced Uncuffed 7.5mm7.511.0310
Reinforced Uncuffed 8.0mm8.011.7320
Reinforced Uncuffed 8.5mm8.512.3320
Reinforced Uncuffed 9.0mm9.013.0320

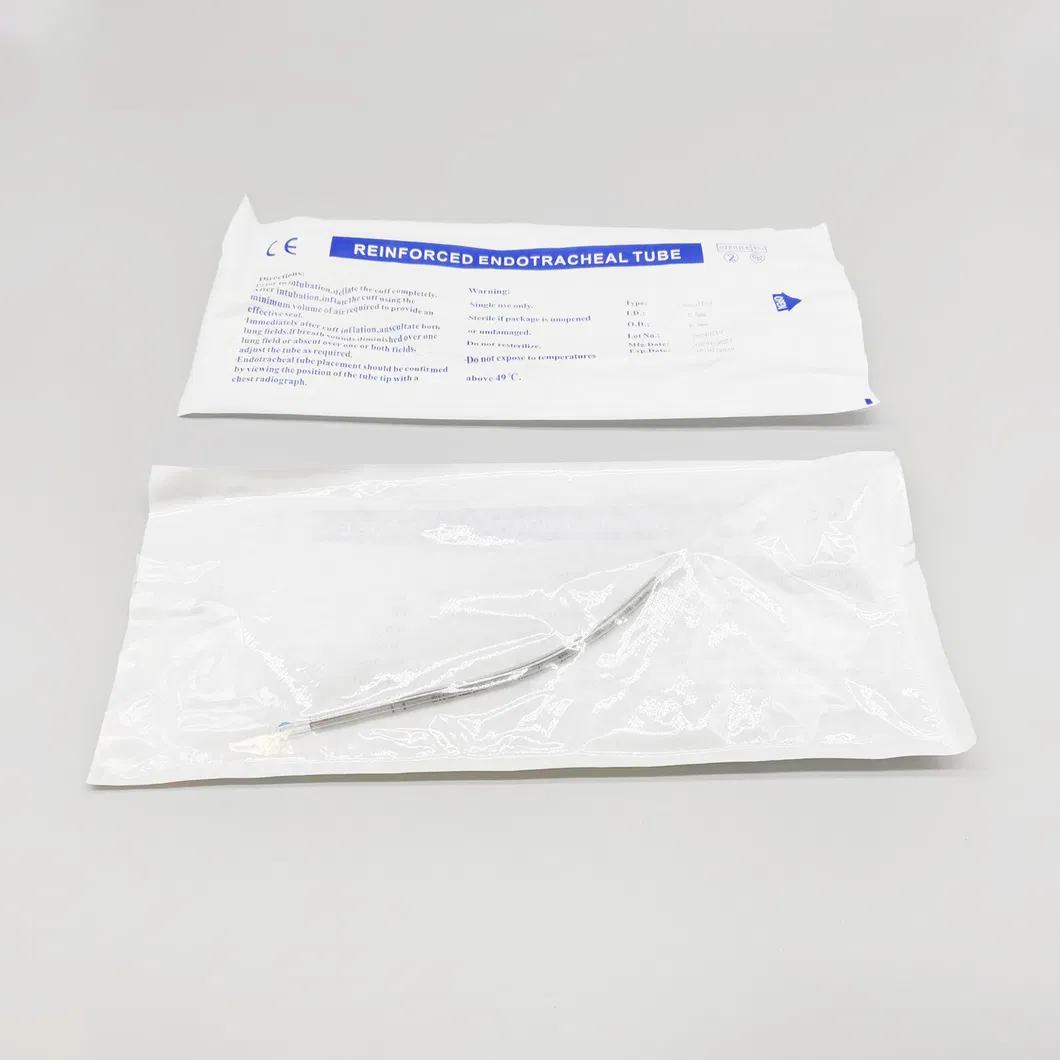

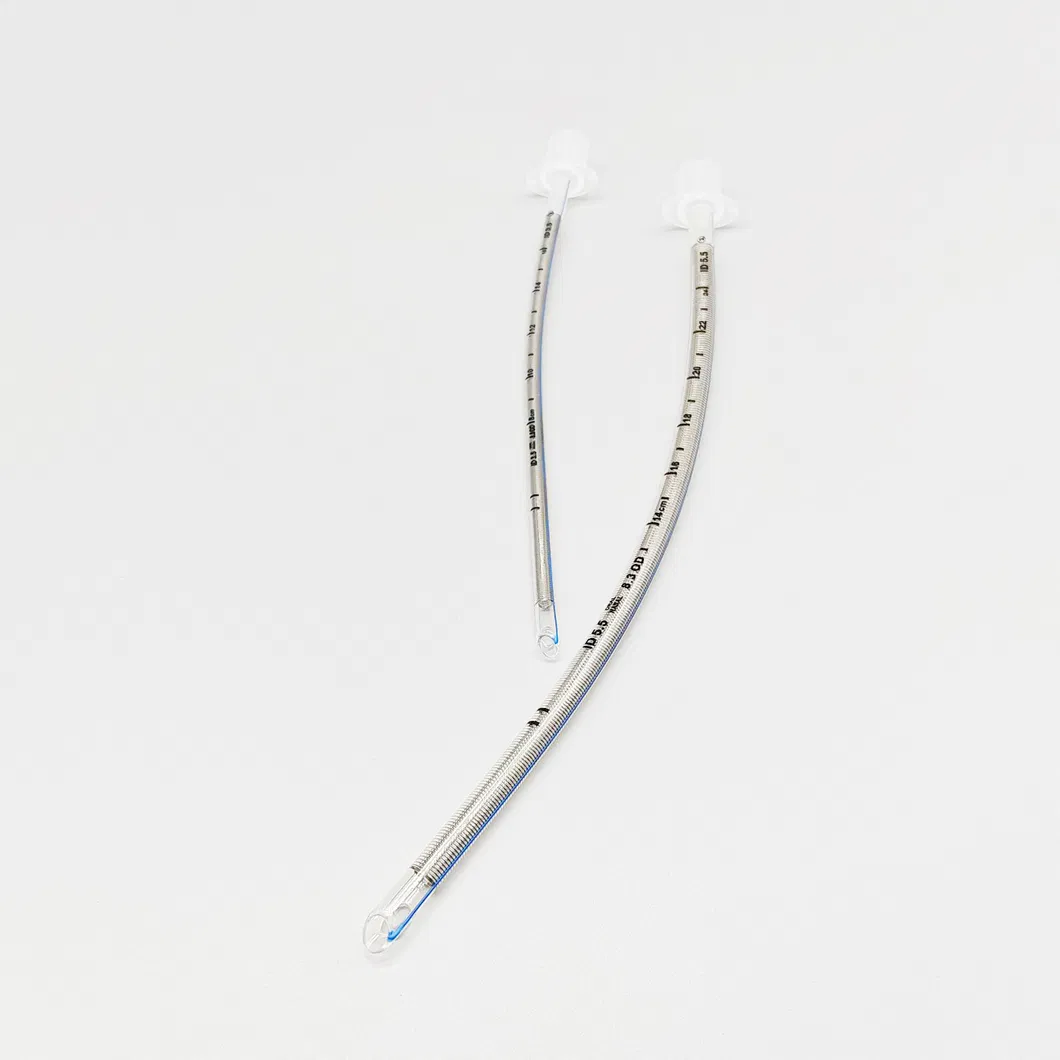

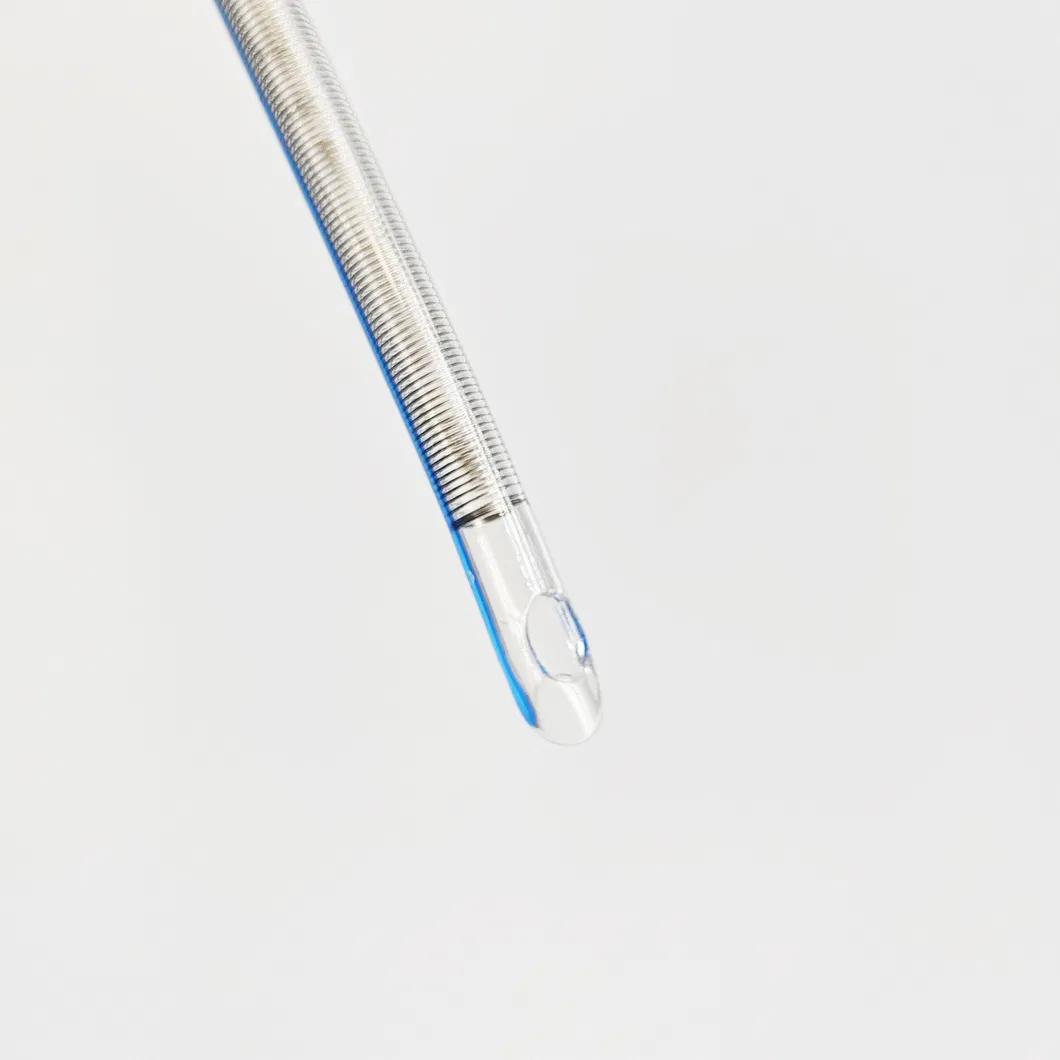

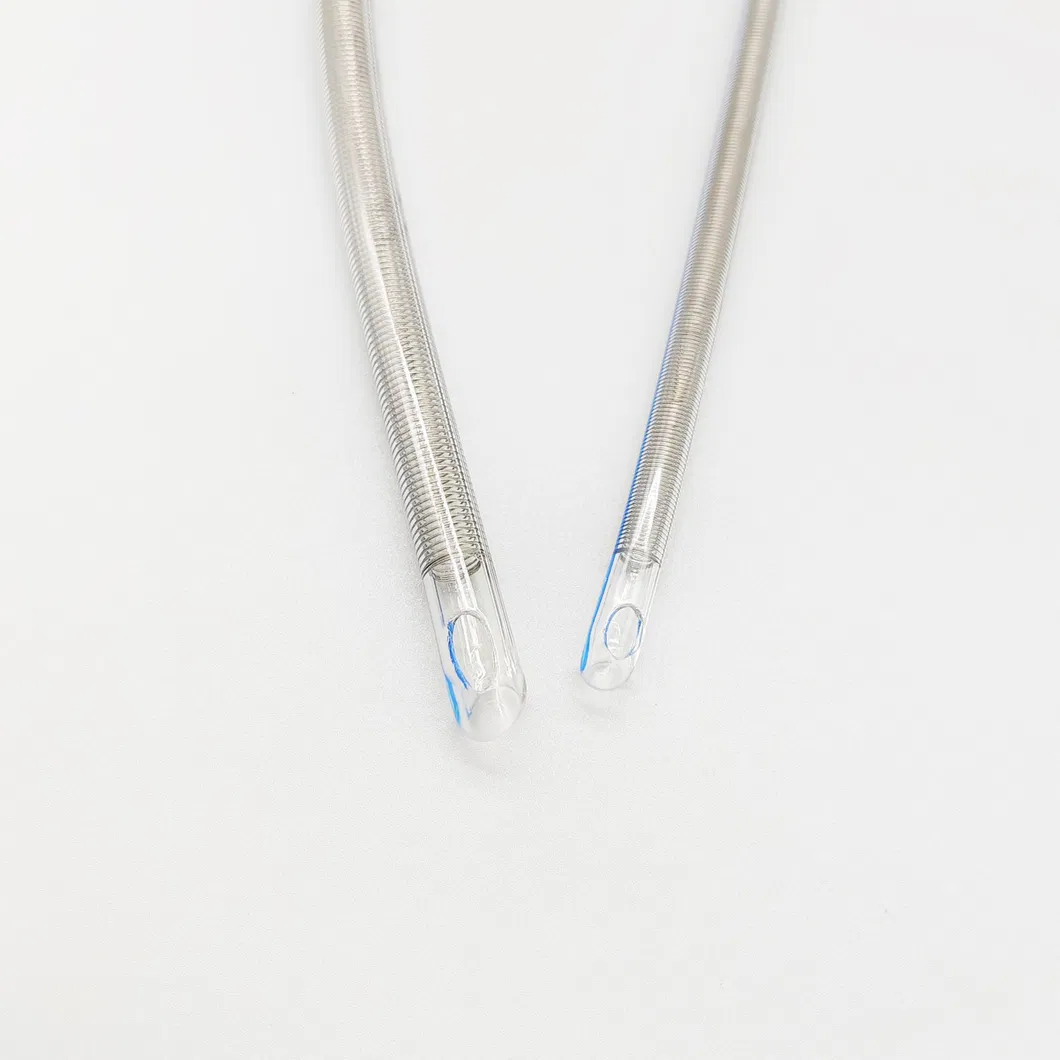

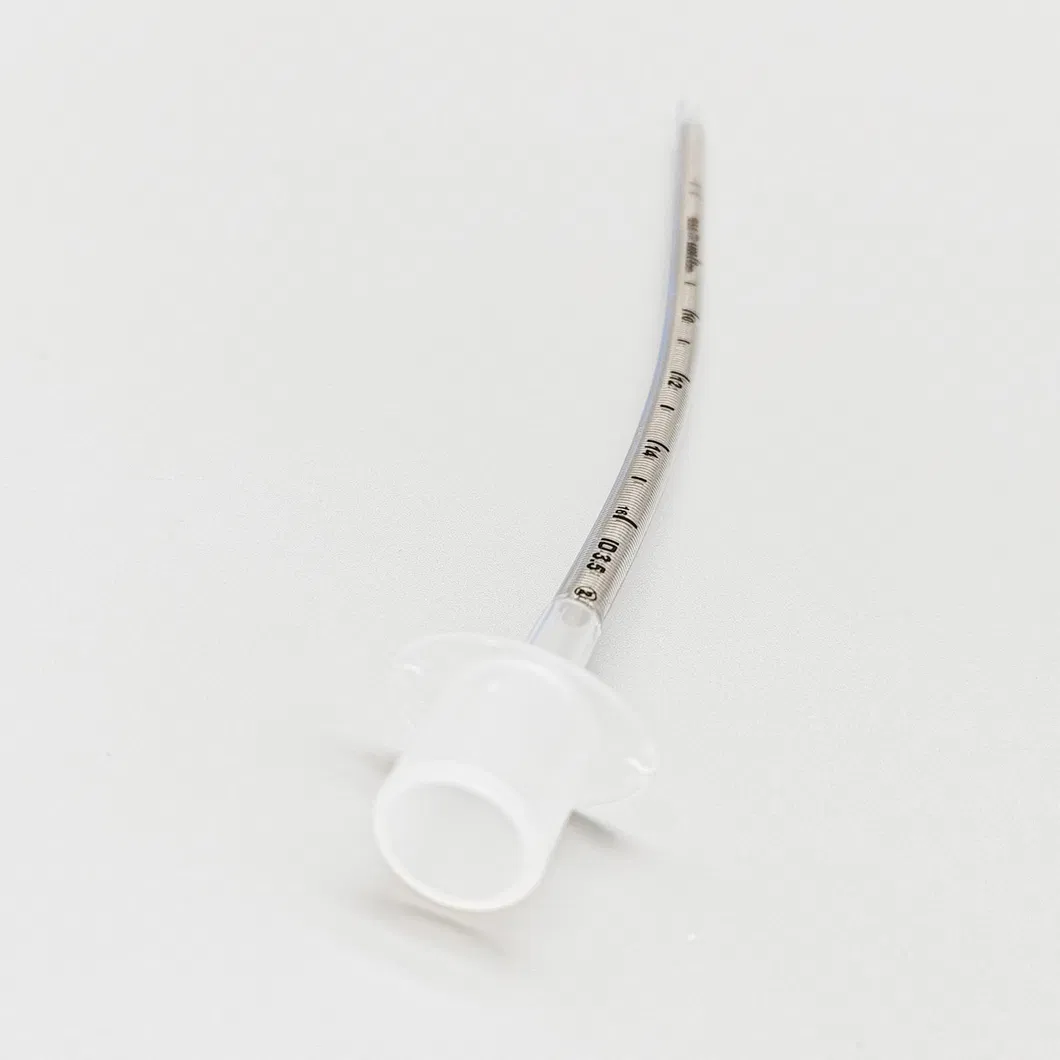

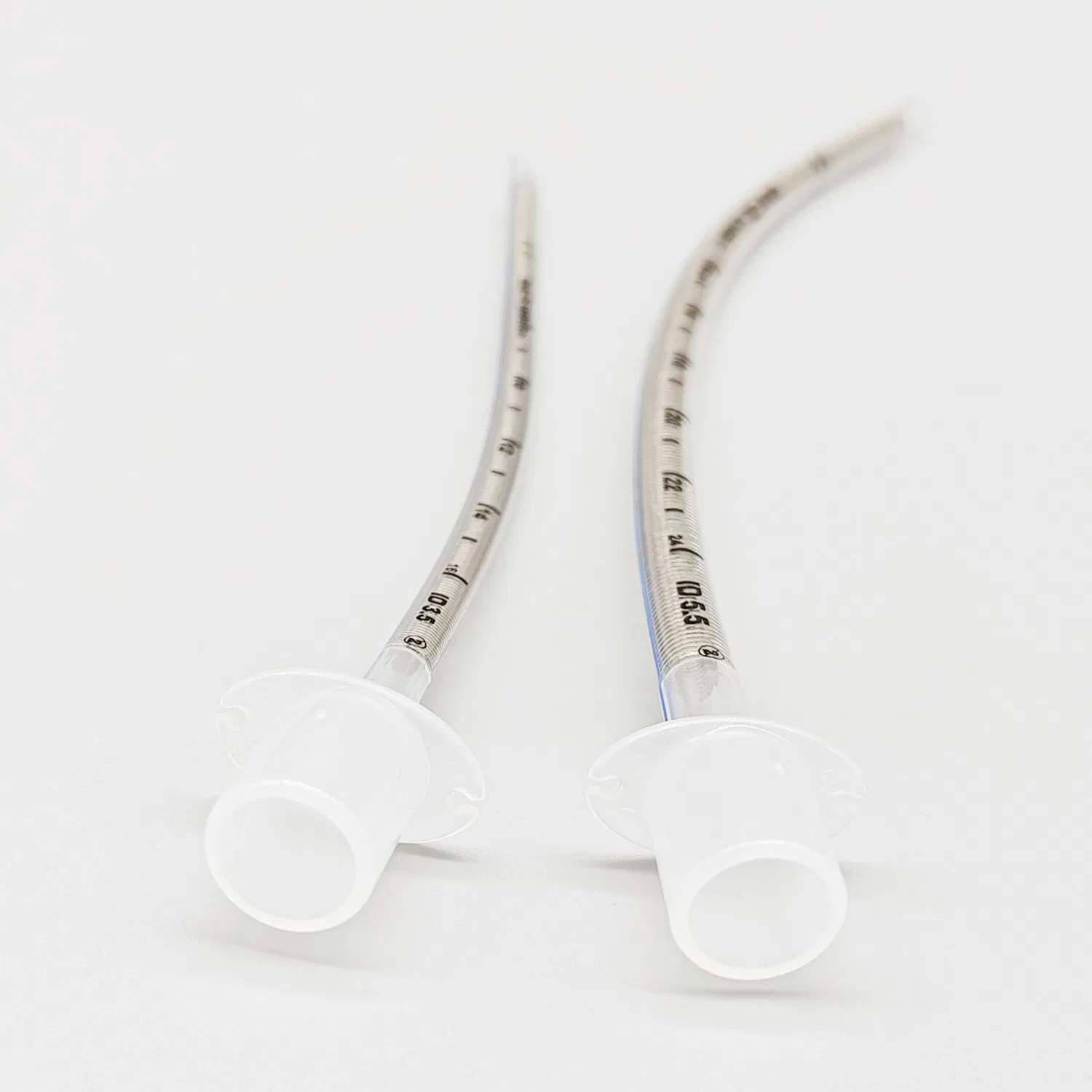

Product Visuals
Instruction for Use
  1. Select appropriate specification after checking patient's trachea.
  2. Remove the sterile tube from protective packaging carefully.
  3. Check lumen patency prior to intubation.
  4. Intubate using a laryngoscope to verify placement.
  5. Fix the tube securely following medical techniques.
  6. Monitor patient conditions and clean sputum as needed.
  7. Extubate according to medical standards and dispose of the tube properly.
⚠️ Contraindications
  • Throat edema / Acute inflammation of trachea
  • Tracheal compression of thoracic aortic aneurysm
  • Severe bleeding / Cervical spinal injuries
📢 Cautions
  • Single use only; do not use when expired.
  • For trained healthcare personnel use only.
  • Intubation period should not exceed 30 days.
  • Do not apply laser on the tube.
  • Do not use if sterile package is opened or damaged.
Related Products
Quality & Logistics
Certificates Display
Packaging and Shipping
Frequently Asked Questions
Why choose our products?
We hold complete certifications including CE, ISO, and FSC. We offer competitive pricing, fast lead times, and have a strong reputation for high-quality medical supplies.
How can I obtain samples?
We provide free samples for evaluation if the sample value is within a standard limit.
What is the typical production lead time?
Usually, the production time is approximately 30 days from order confirmation.
Do you offer OEM services?
Yes, we provide comprehensive OEM printing and packaging services. You may choose neutral English packing or custom branding.
What are the accepted payment and delivery terms?
We accept delivery terms such as FOB, CFR, CIF, and EXW. Payments can be made in USD, EUR, or CNY via T/T, L/C, Western Union, PayPal, or Credit Card.
How do you ensure quality control?
We have a professional QC team with over 10 years of experience who monitor every stage of the production process to ensure high standards.
