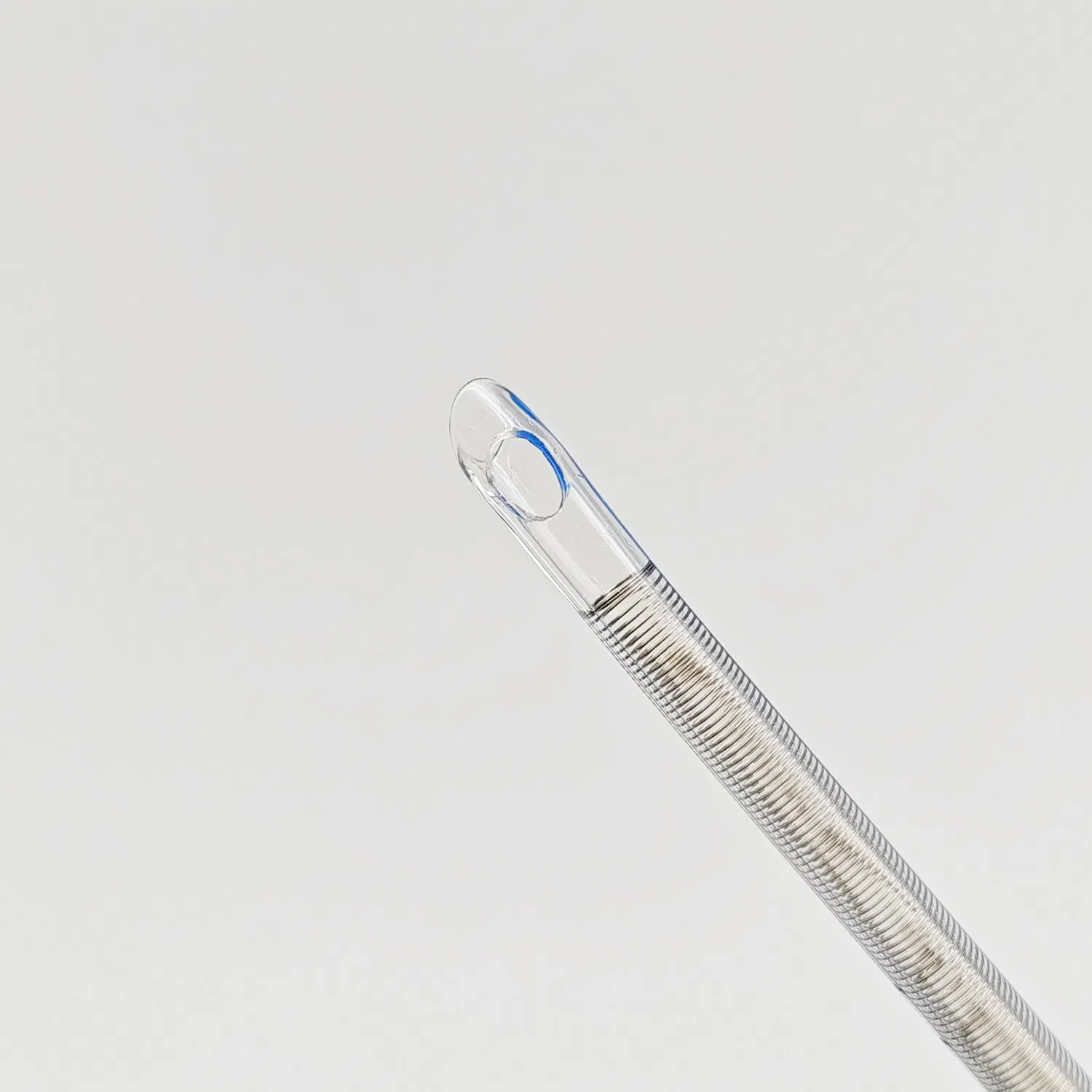

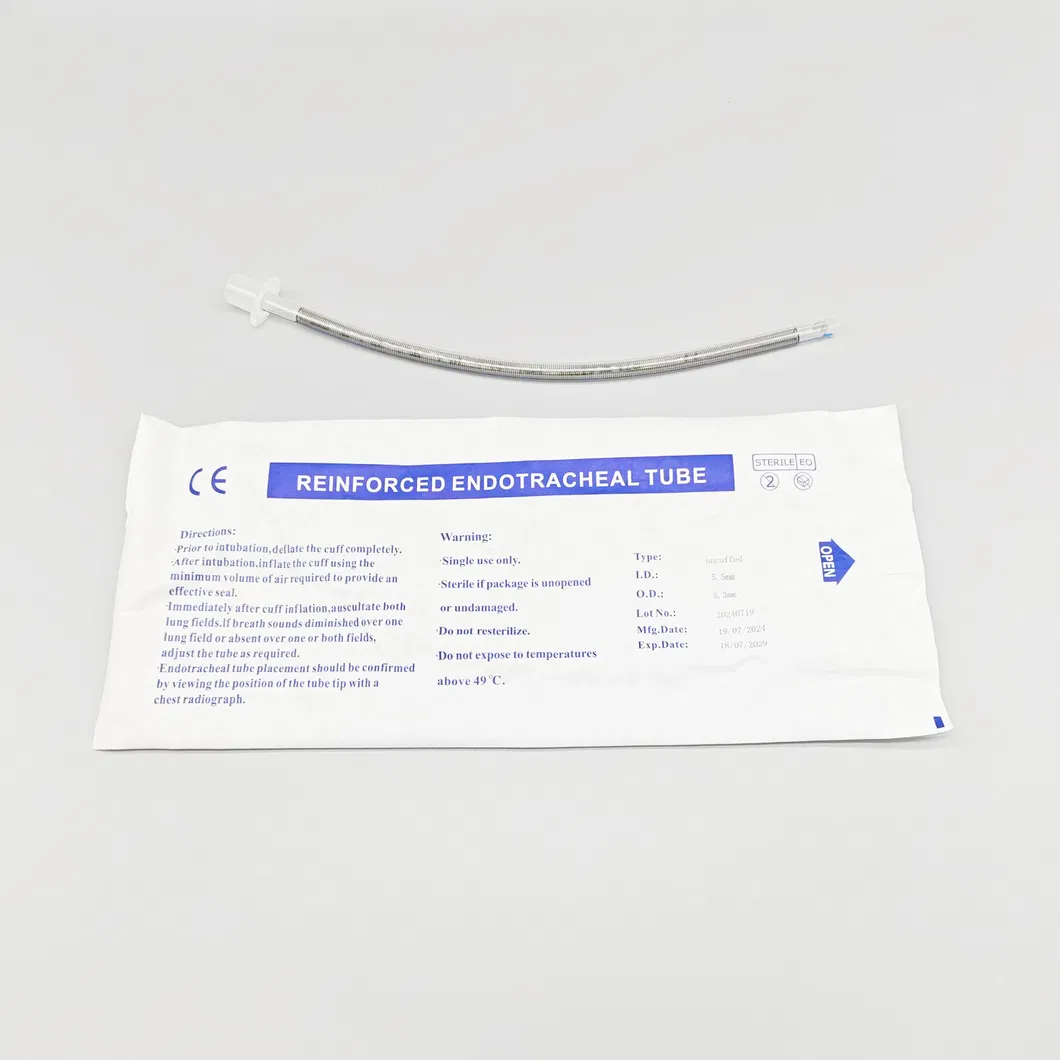

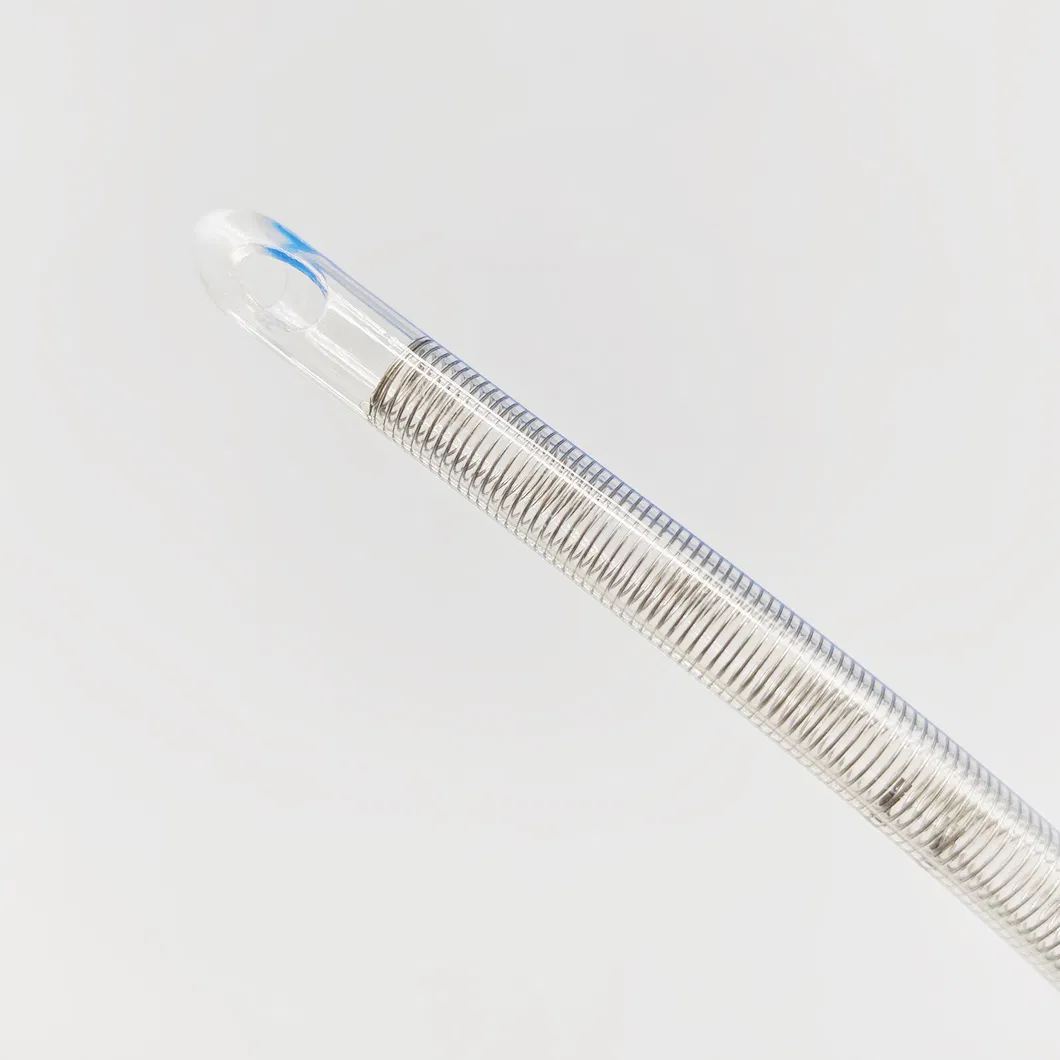

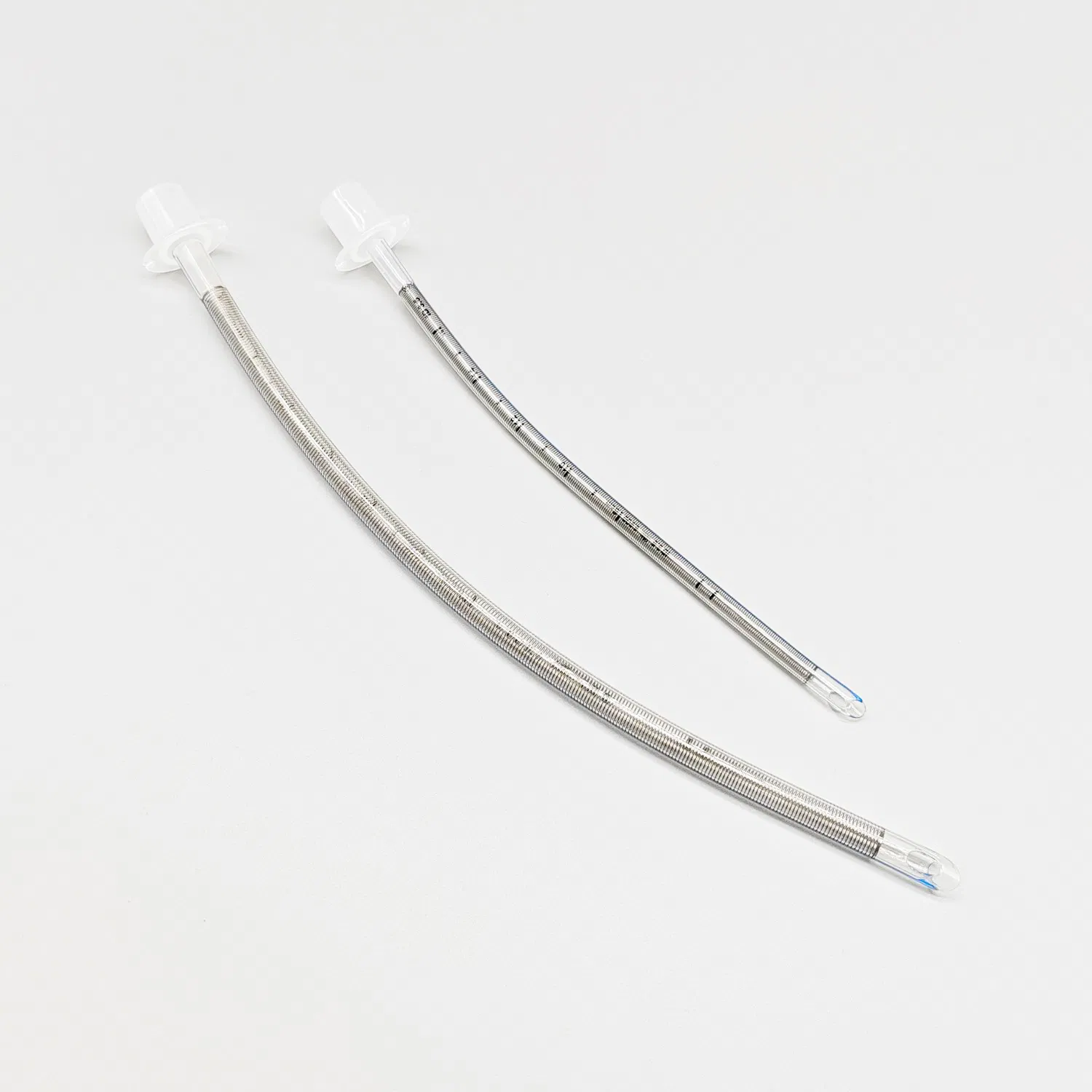

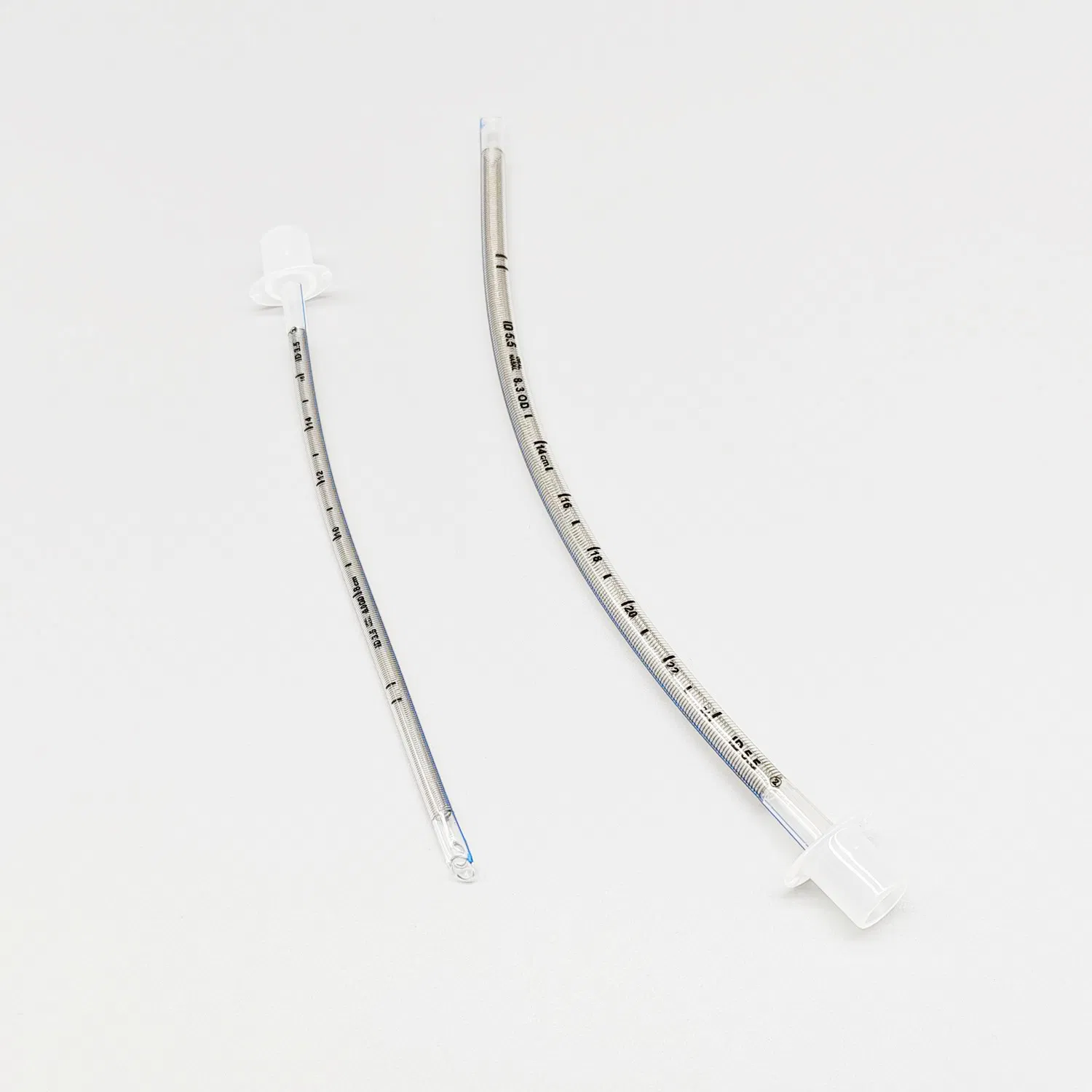

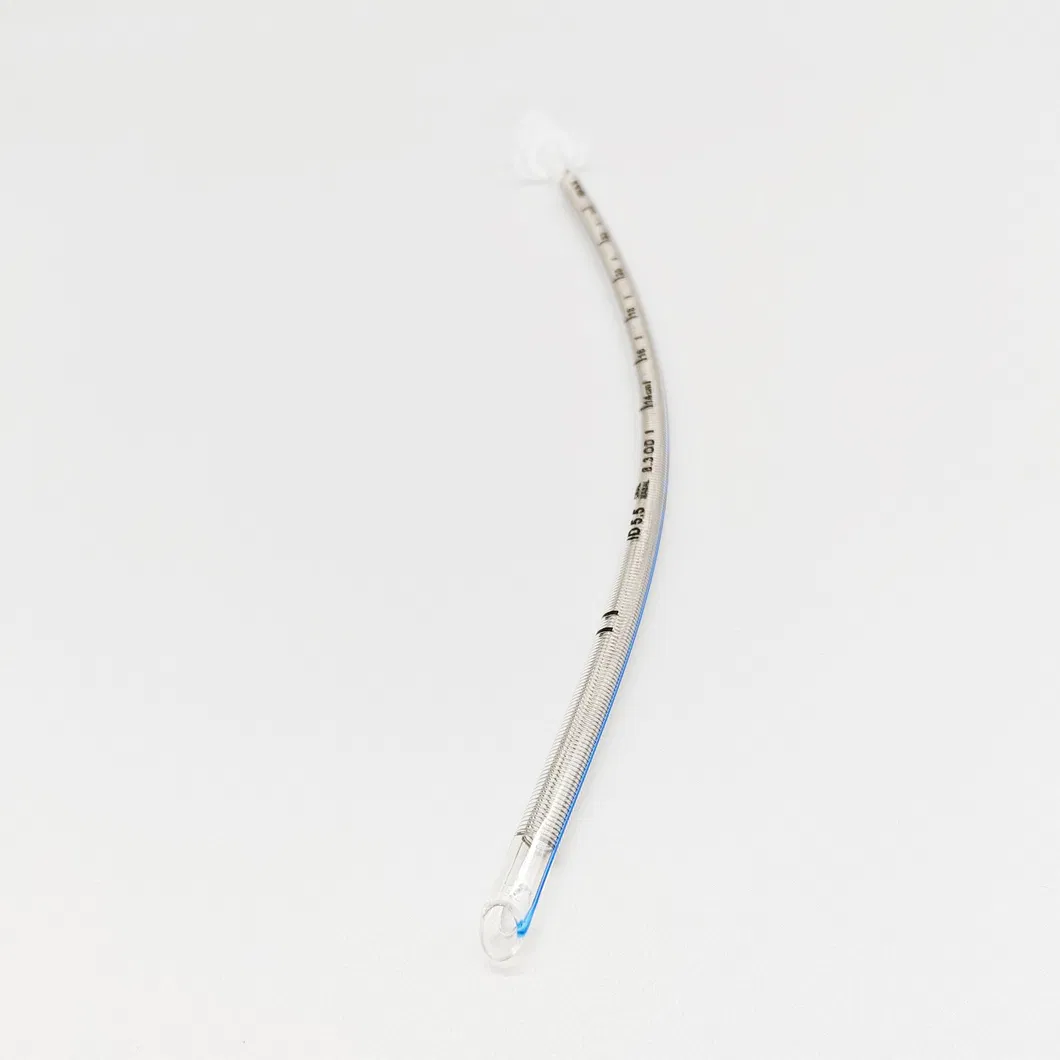

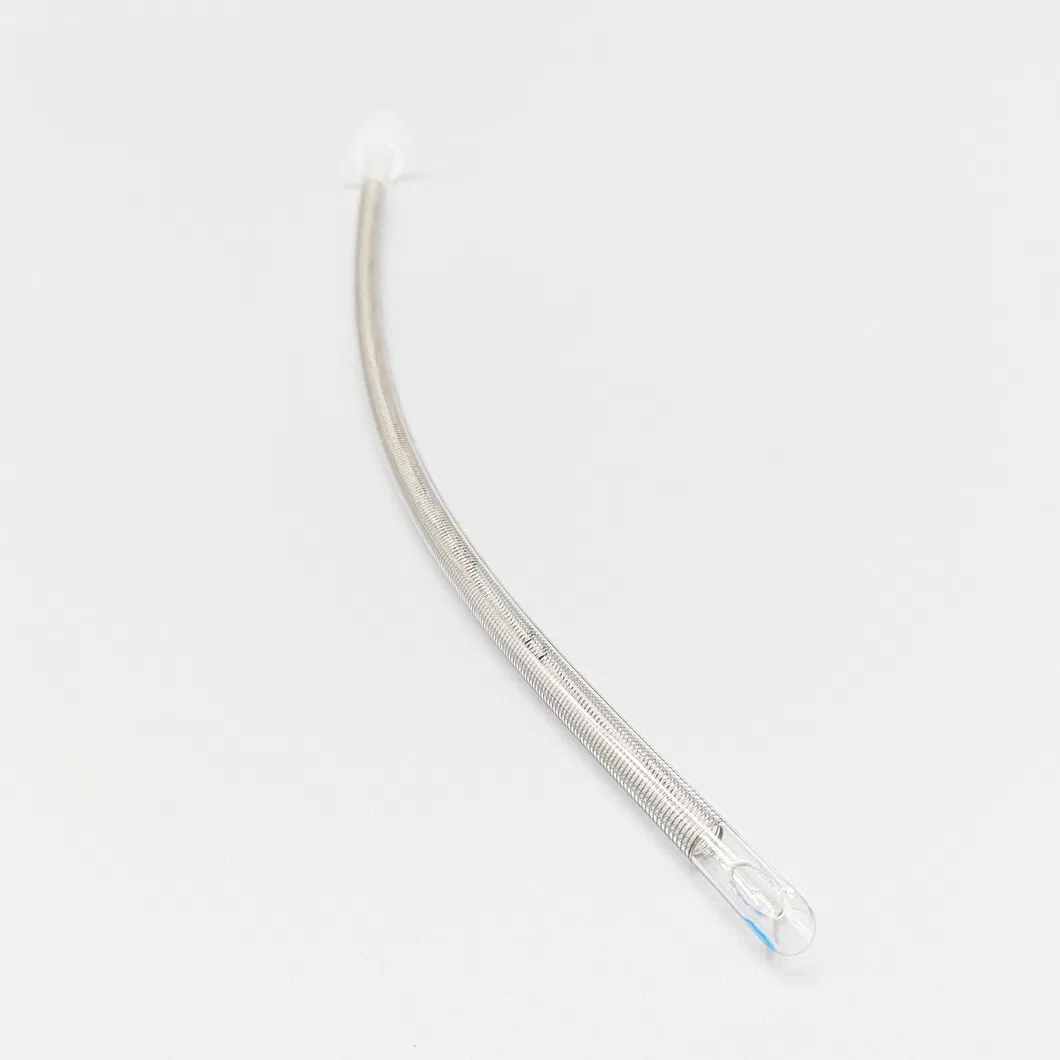

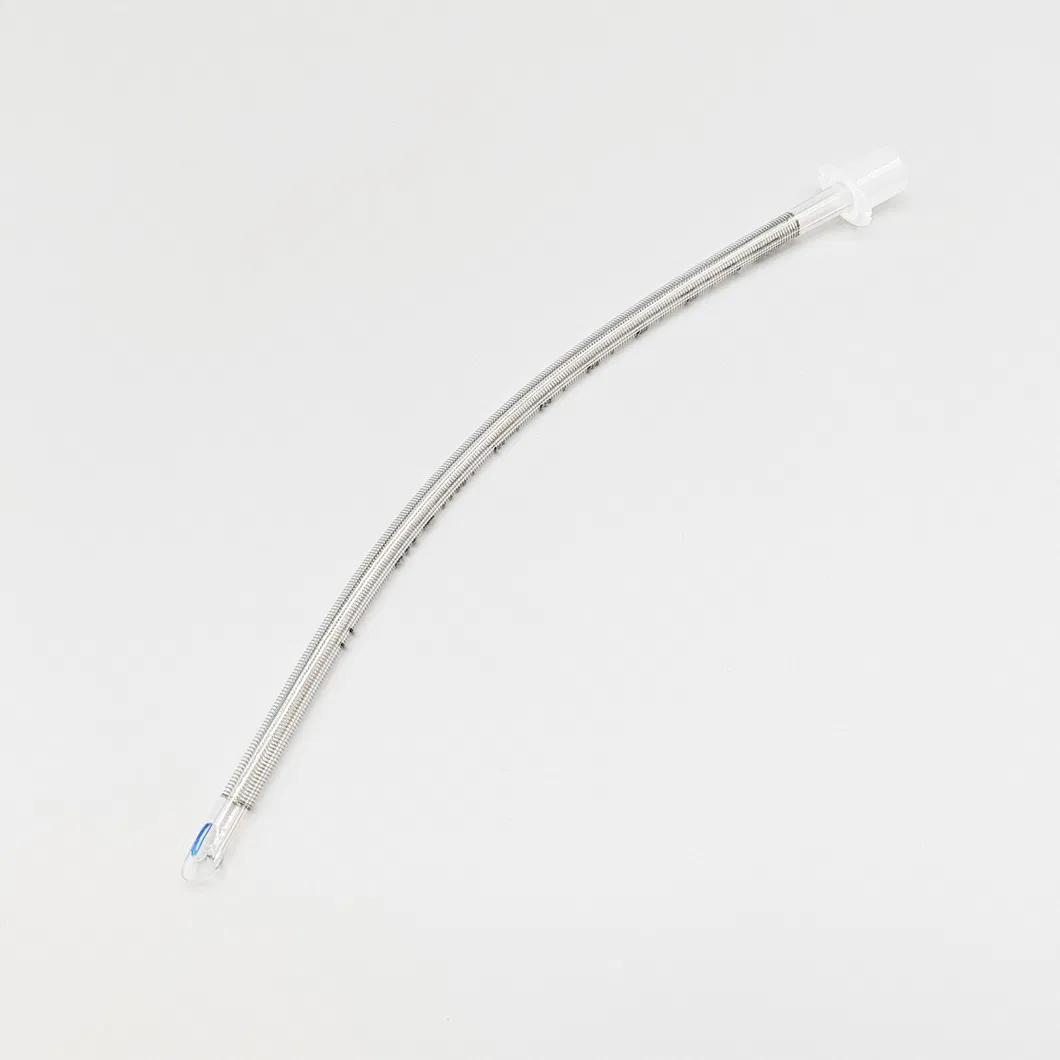

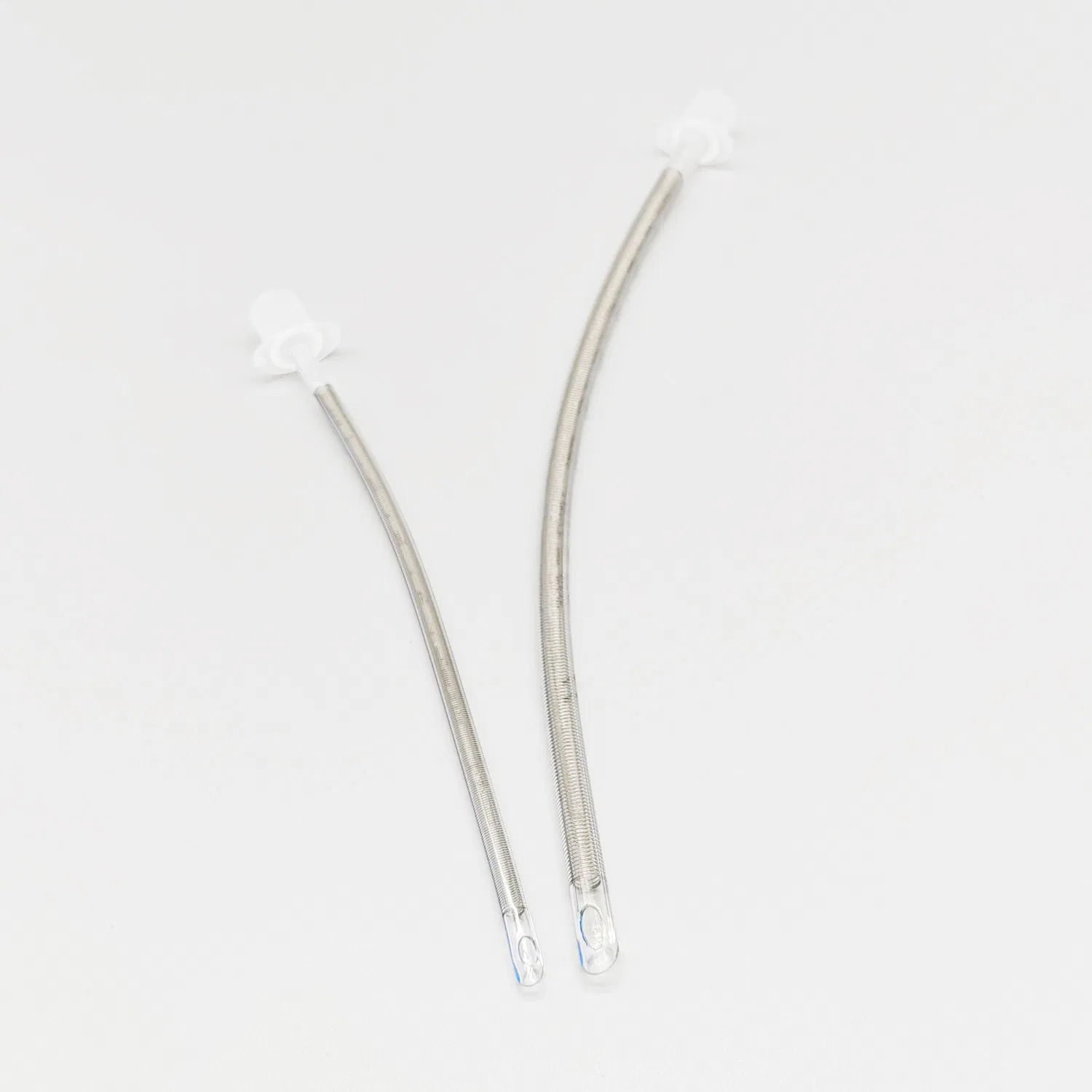

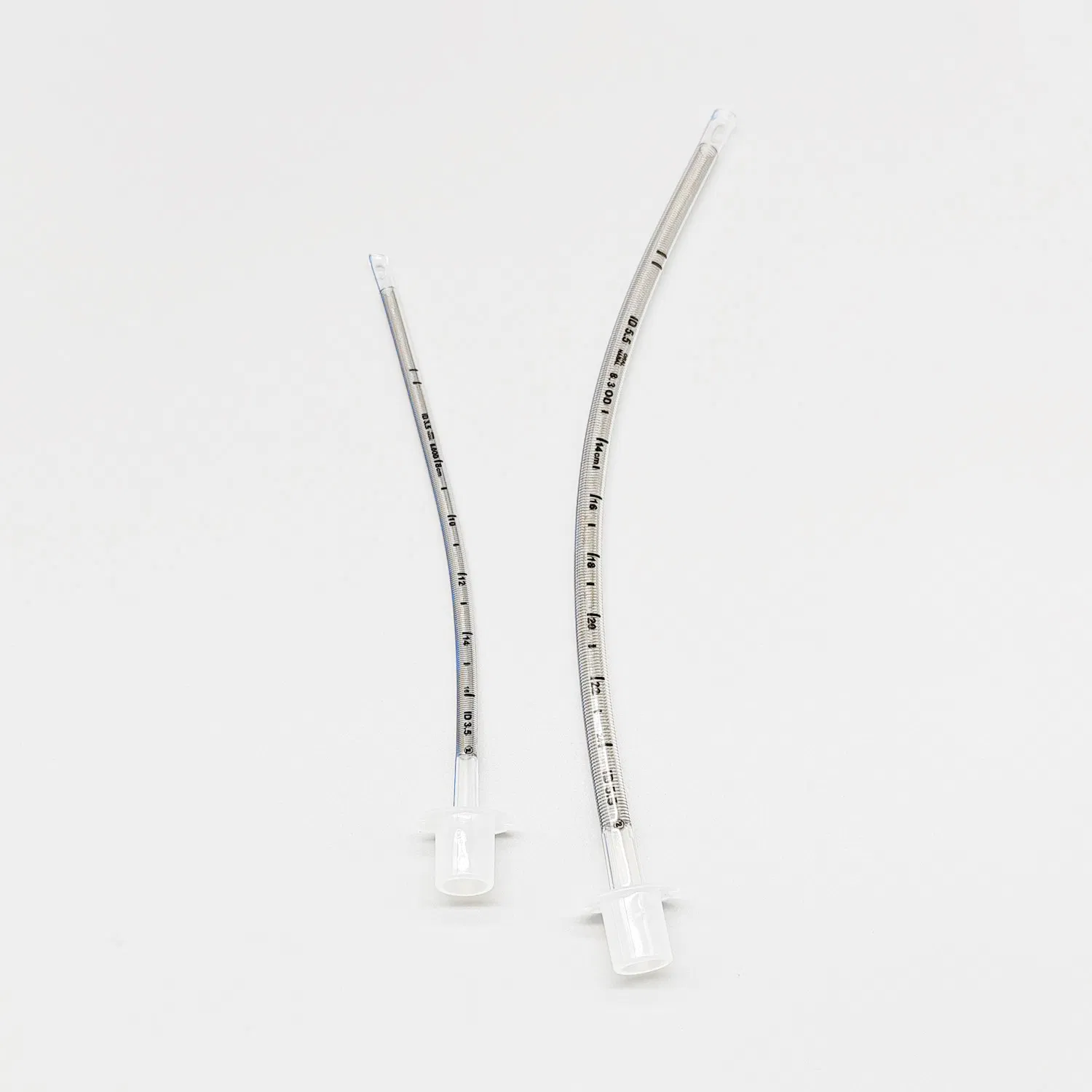

The reinforced endotracheal tube is intended for airway management by oral or nasal intubation of the trachea during anesthesia. It is a device inserted into the trachea through the mouth or nose to facilitate breathing and it may be used where the patient's neck is likely to be moved of flexed or the patient is in the prone position so that a non-reinforced tracheal tube might become kinked.

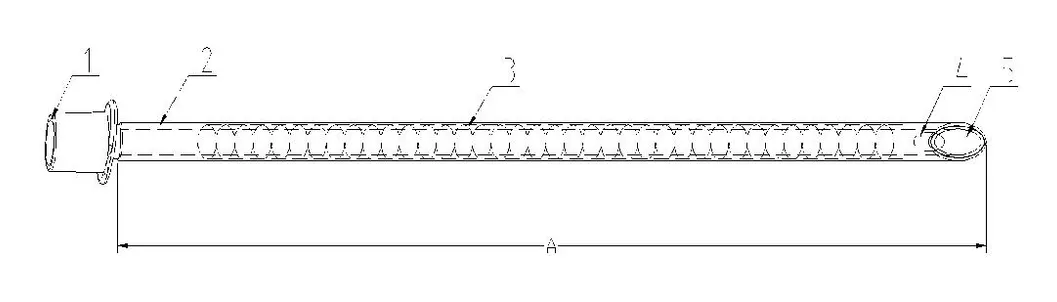

| No. | Component Part |
|---|---|
| 1 | Machine end |
| 2 | Shaft |
| 3 | Reinforced stainless steel |
| 4 | Murphy eye |
| 5 | Patient end |
| Specifications | ID (mm) | OD (mm) | Length (mm) |
|---|---|---|---|
| Reinforced Uncuffed 3.5mm | 3.5 | 6.0 | 180 |
| Reinforced Uncuffed 4.0mm | 4.0 | 6.7 | 200 |
| Reinforced Uncuffed 4.5mm | 4.5 | 7.3 | 220 |
| Reinforced Uncuffed 5.0mm | 5.0 | 7.7 | 240 |
| Reinforced Uncuffed 5.5mm | 5.5 | 8.3 | 270 |
| Reinforced Uncuffed 6.0mm | 6.0 | 9.0 | 280 |
| Reinforced Uncuffed 6.5mm | 6.5 | 9.7 | 290 |
| Reinforced Uncuffed 7.0mm | 7.0 | 10.3 | 300 |
| Reinforced Uncuffed 7.5mm | 7.5 | 11.0 | 310 |
| Reinforced Uncuffed 8.0mm | 8.0 | 11.7 | 320 |
| Reinforced Uncuffed 8.5mm | 8.5 | 12.3 | 320 |
| Reinforced Uncuffed 9.0mm | 9.0 | 13.0 | 320 |
