Clinical diagnostic laboratories, biotechnology laboratories, pharmacy and chemistry laboratories, environmental laboratories, food laboratories, electromechanical laboratories, etc.

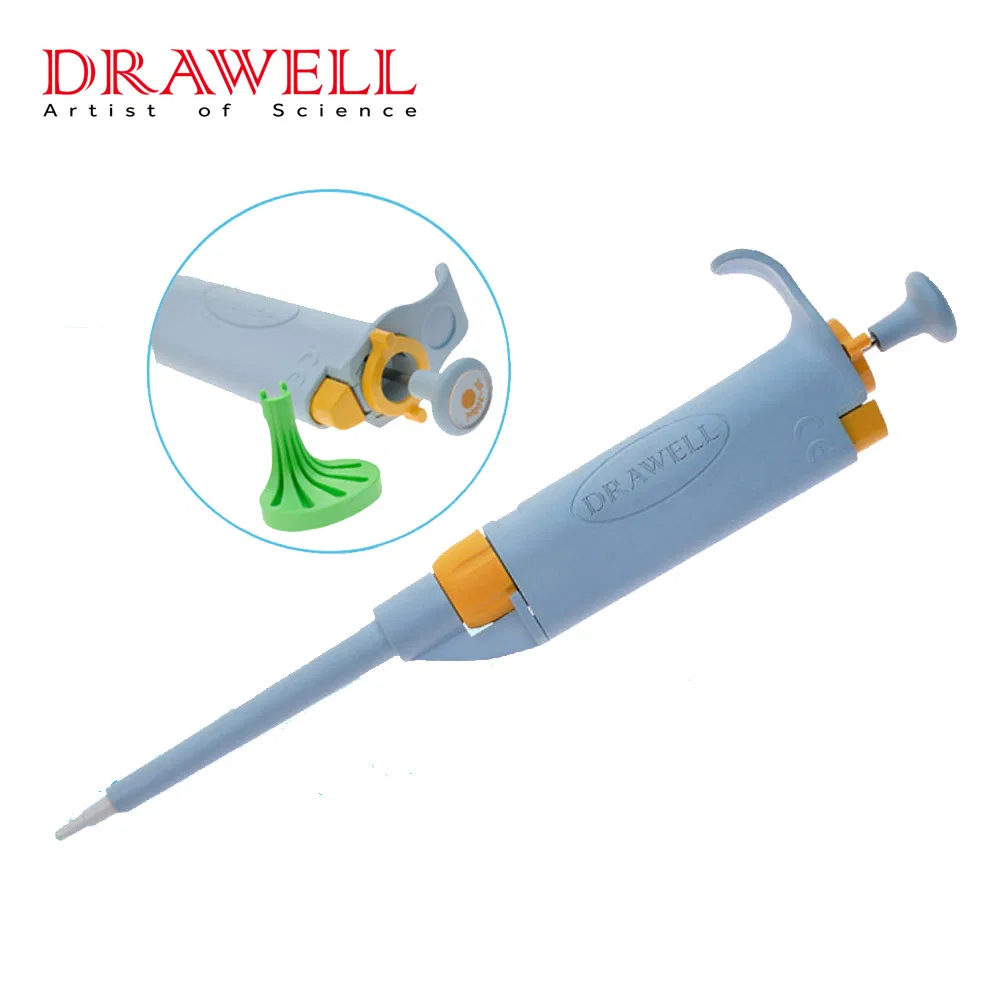

EPP Adjustable Pipette Features
Fully autoclavable (121ºC for 20 minutes)
Enhanced UV resistance
Easy digital volume setting

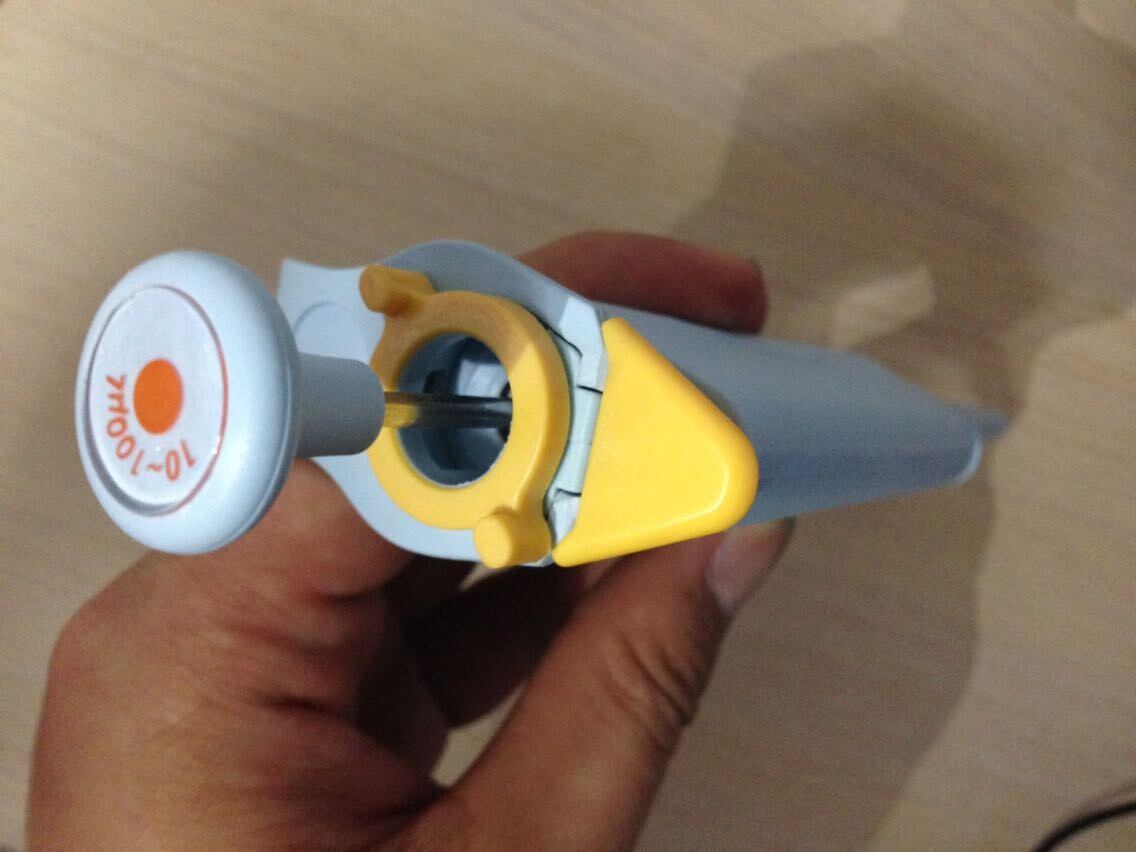

Easy and convenient single hand locking lever
Eight sizes to cover a wide volume range (0.1μL - 10mL)
PTFE (Fluorine resin) is used in the airtight chamber of the instrument, maintaining excellent air tightness and precise reproducibility for long hours

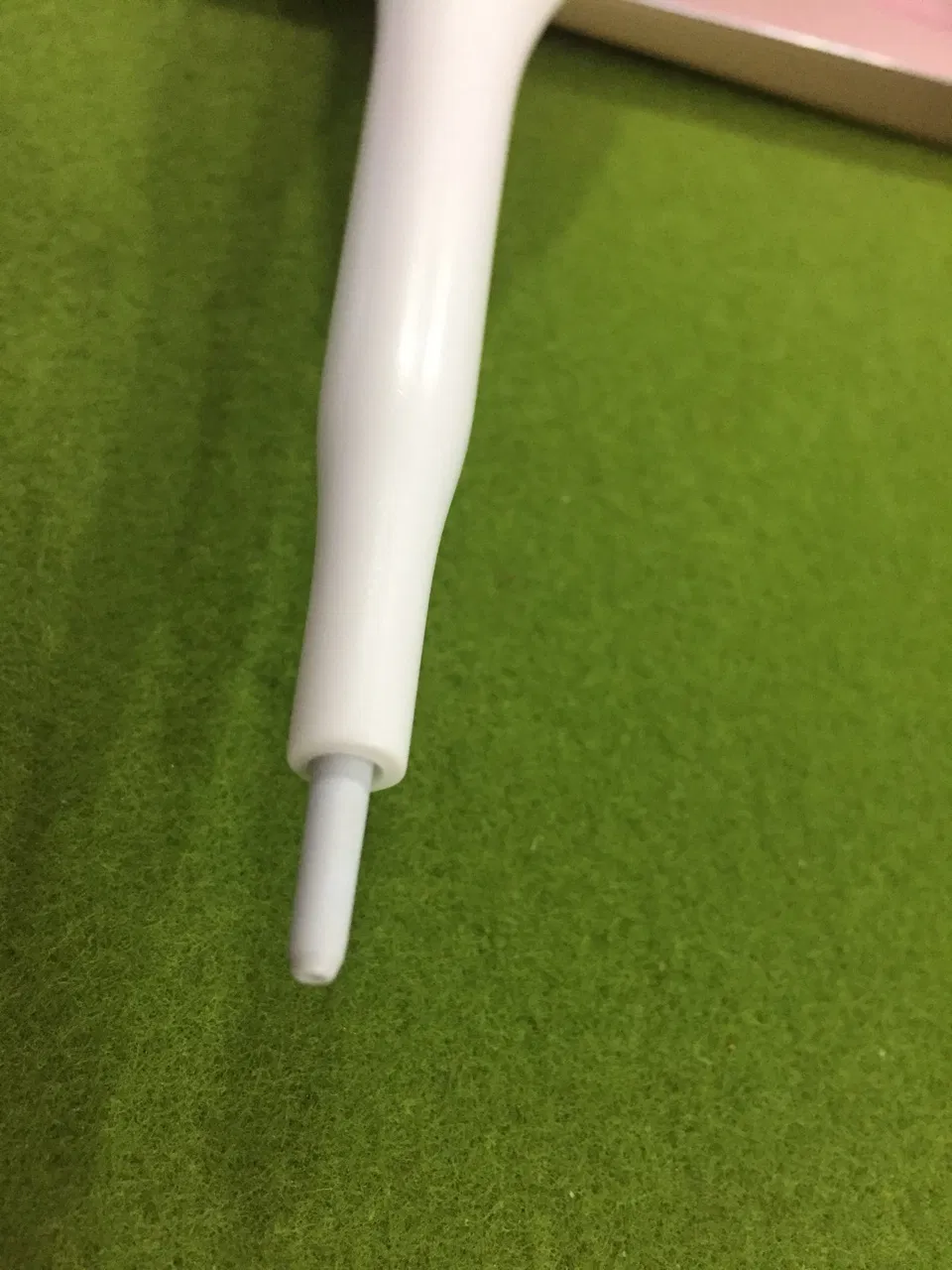

Filtered Nozzles are used for volume models larger than 1000μL
Tip ejector allows tip ejections without touching the tip
Tip ejector is made of plastic to avoid damaging glass tubes
Model Performance Specifications
Model No.
Volume (µL)
Increment (µL)
Rel. %
Abs. µL
Rel. CV%
Abs. SD µL
EPP2
0.2 / 1 / 2
0.002
12.0 / 2.7 / 1.5
0.024 / 0.027 / 0.030
6.00 / 1.30 / 0.70
0.012 / 0.013 / 0.014
EPP10
1 / 5 / 10
0.02
2.5 / 1.5 / 1.0
0.025 / 0.075 / 0.100
1.20 / 0.60 / 0.40
0.012 / 0.030 / 0.040
EPP20
2 / 10 / 20
0.02
7.5 / 1.5 / 1.0
0.15 / 0.15 / 0.20
2.00 / 0.50 / 0.30
0.040 / 0.050 / 0.060
EPP50
5 / 25 / 50
0.02
7.5 / 1.5 / 1.0
0.15 / 0.15 / 0.20
2.00 / 0.50 / 0.30
0.040 / 0.050 / 0.060
EPP100
10 / 50 / 100
0.2
3.5 / 0.8 / 0.8
0.35 / 0.40 / 0.80
1.00 / 0.24 / 0.15
0.10 / 0.120 / 0.150
EPP200
20 / 100 / 200
0.2
2.5 / 0.8 / 0.8
0.5 / 0.8 / 1.60
1.00 / 0.25 / 0.15
0.200 / 0.250 / 0.300
EPP300
30 / 150 / 300
0.2
2.5 / 0.8 / 0.8
0.5 / 0.8 / 1.60
1.00 / 0.25 / 0.15
0.02 / 0.25 / 0.30
EPP1000
100 / 500 / 1000
2.0
3.0 / 0.8 / 0.8
3.0 / 4.0 / 8.0
0.60 / 0.20 / 0.15
0.600 / 1.000 / 1.5
EPP5000
500 / 2500 / 5000
2.0
2.4 / 0.6 / 0.6
12.0 / 15.0 / 18.0
0.60 / 0.20 / 0.16
3.0 / 5.0 / 8.0
EPP10000
1000 / 5000 / 10000
2.0
3.0 / 0.8 / 0.8
3.0 / 4.0 / 8.0
0.60 / 0.20 / 0.15
0.6 / 1.0 / 1.5

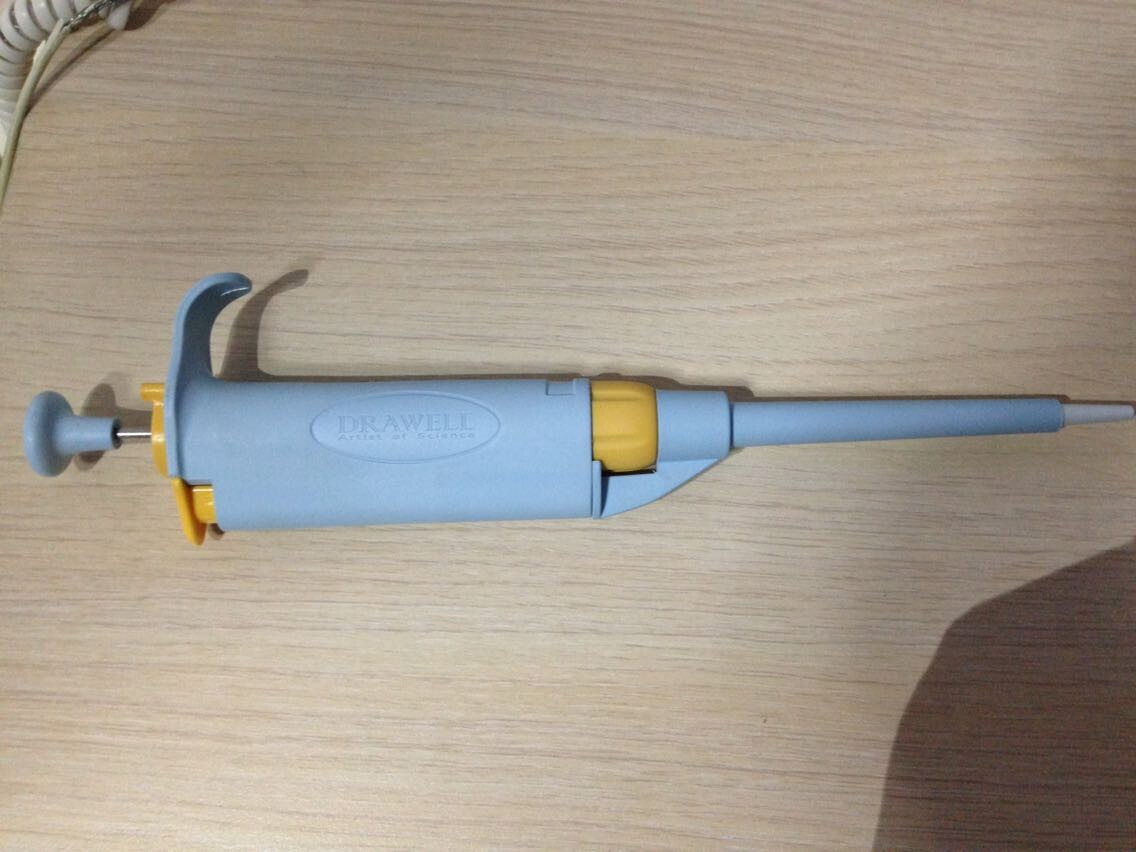

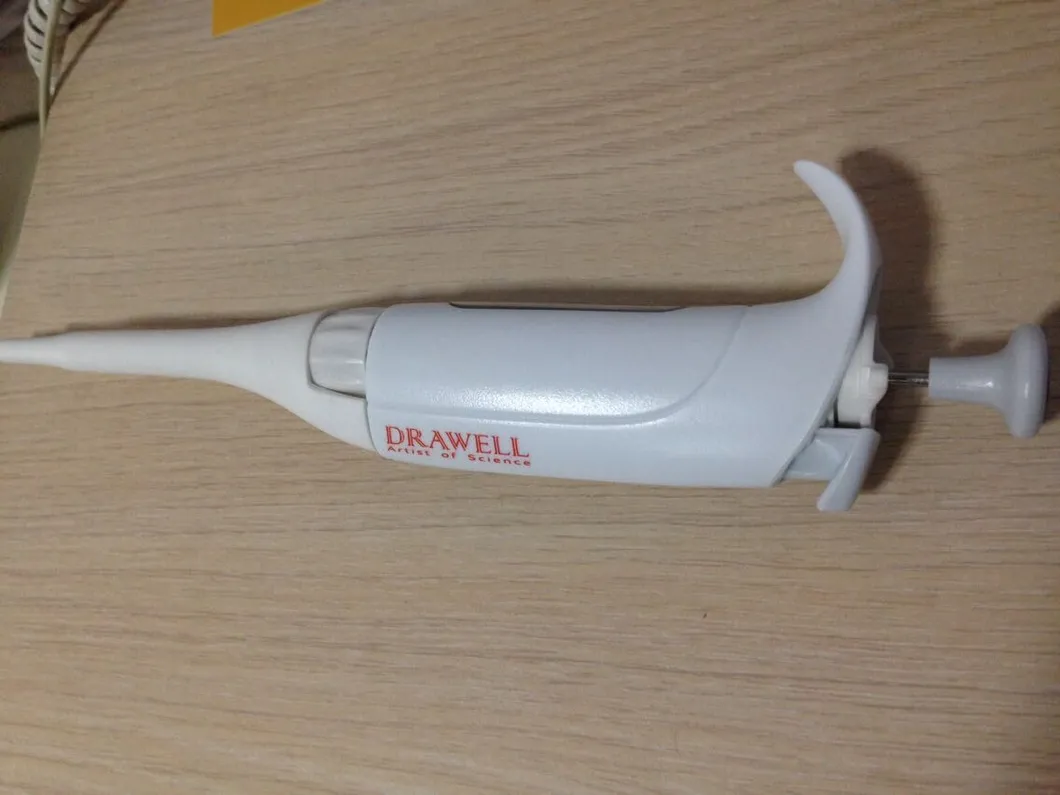

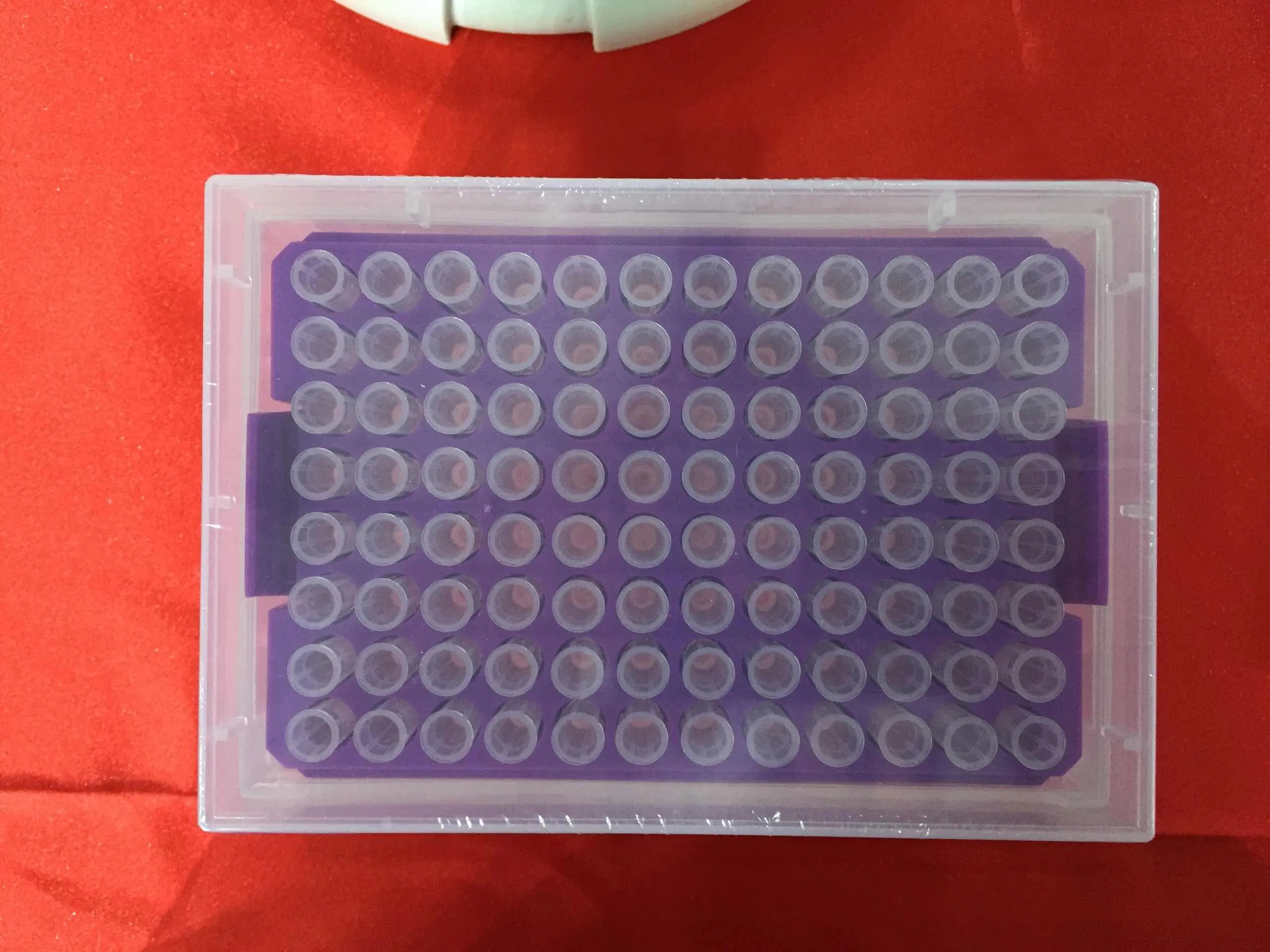

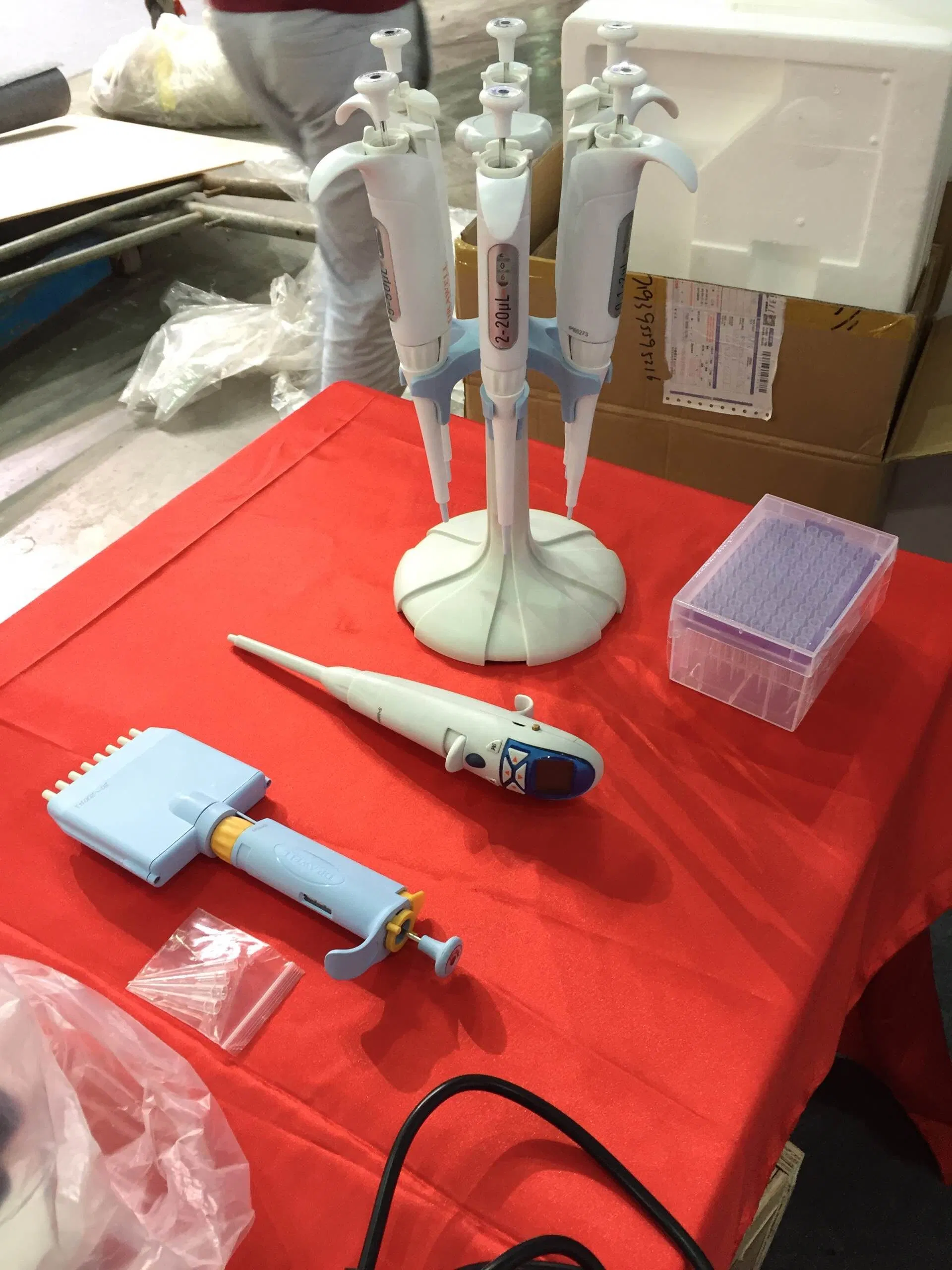

Detailed Photos
Certifications
Frequently Asked Questions (FAQ)
Q1: Is the EPP pipette fully autoclavable?
Yes, the entire EPP pipette is designed to be fully autoclavable at 121ºC (250ºF) for 20 minutes. No disassembly is required before autoclaving, making it extremely convenient for sterile environments.
Q2: How does the UV resistance performance of this pipette hold up?
The pipette features enhanced UV-resistant materials and coatings that maintain standard mechanical performance and resist structural degradation, even during prolonged exposure to UV sterilization inside clean benches.
Q3: What material is utilized inside the airtight chamber?
The airtight chamber uses high-grade PTFE (Fluorine resin). This premium material ensures outstanding chemical resistance, durable air tightness, and precise, highly reproducible measurements over extended operation cycles.
Q4: Does the pipette offer protection features against tip contamination?
Yes, it features an integrated, high-durability plastic tip ejector. It allows safe and rapid ejection of contaminated tips without any direct hand contact, while its plastic build eliminates risk of scratching or damaging laboratory glassware.
Q5: Can I adjust the volume of the pipette single-handedly?
Absolutely. The EPP series features a highly ergonomic design that supports quick and precise single-hand digital volume adjustment, accompanied by a secure locking lever to prevent unintentional volume shifts during work.
Q6: What is the benefit of the filtered nozzles in larger models?
For volume models larger than 1000μL, specialized filtered nozzles are utilized to effectively block aerosols and liquids from entering the internal barrel of the pipette, greatly reducing cross-contamination risks and safeguarding internal mechanism parts.
