Surgical Instrument Suture Anchor Arthroscopy

Product Description

Surgical Instrument Suture Anchor Arthroscopy
Surgical Instrument Suture Anchor Arthroscopy Surgical Instrument Suture Anchor Arthroscopy
Surgical Instrument Suture Anchor Arthroscopy
Technical Specifications
Product Name Specification Anchor Outer Diameter (mm) Anchor Length (mm) Total Length (mm) Suture Spec
Suture Anchor For Joint Tendon Repair T12-φ2.0×7.5 φ2.0 7.5 184.3 2 #0
T12-φ2.8×11.5 φ2.8 11.5 251.4 1 #2
T12-φ3.5×12 φ3.5 12 255.2 2 #2
T12-φ5.0×15.5 φ5.0 15.5 257.5 2 #2
T12-φ6.5×16.3 φ6.5 16.3 260.7 2 #2

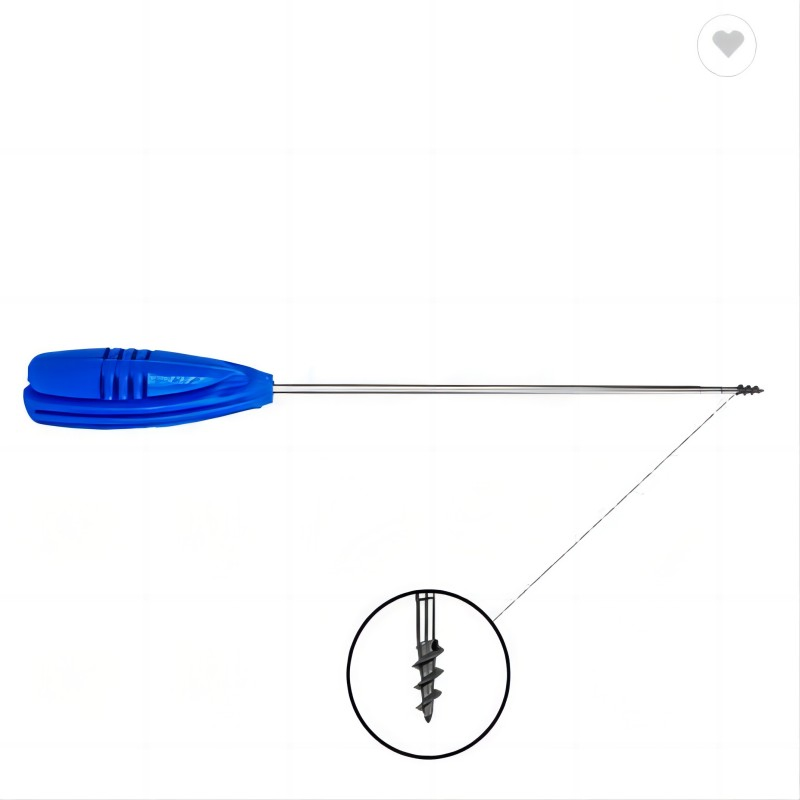

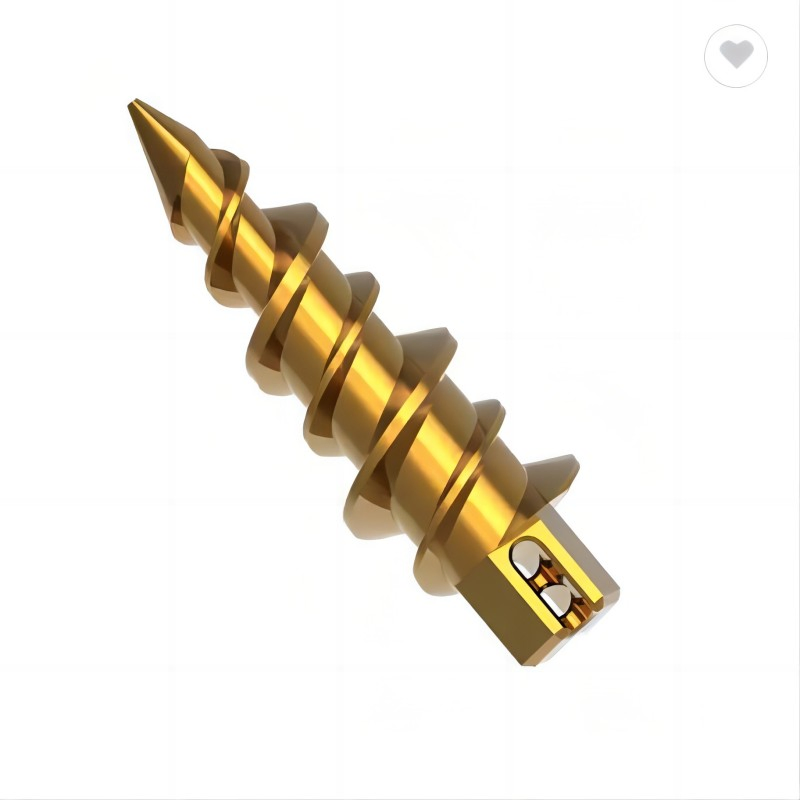

A suture anchor is a very small implant that fixes sutures in the bone and reconnects the soft tissue and bone. It is a fully threaded anchor with suture holes running through the center of the anchor to provide flexibility for working sutures. Allows to reduce bone removal during the guide hole creation process without affecting the pullout strength.

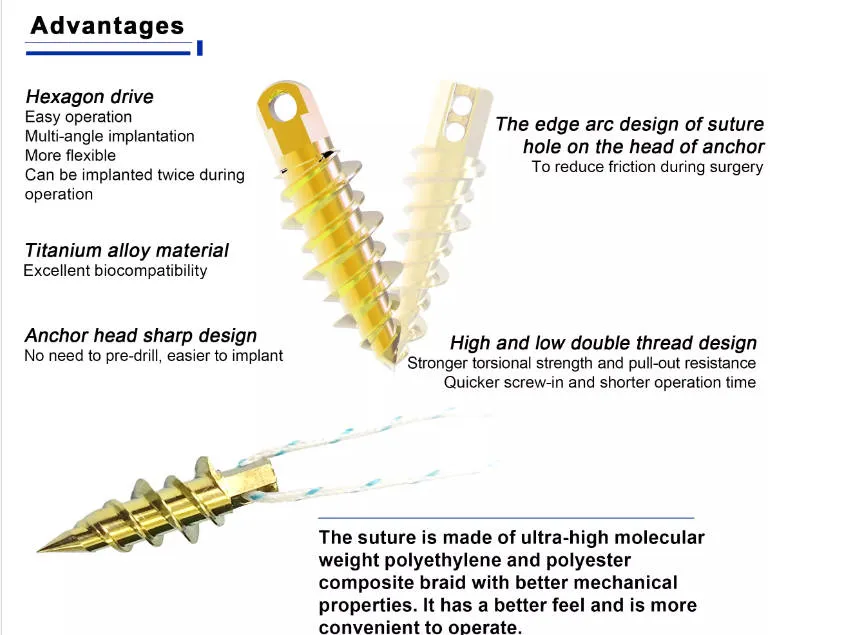

Product Advantages

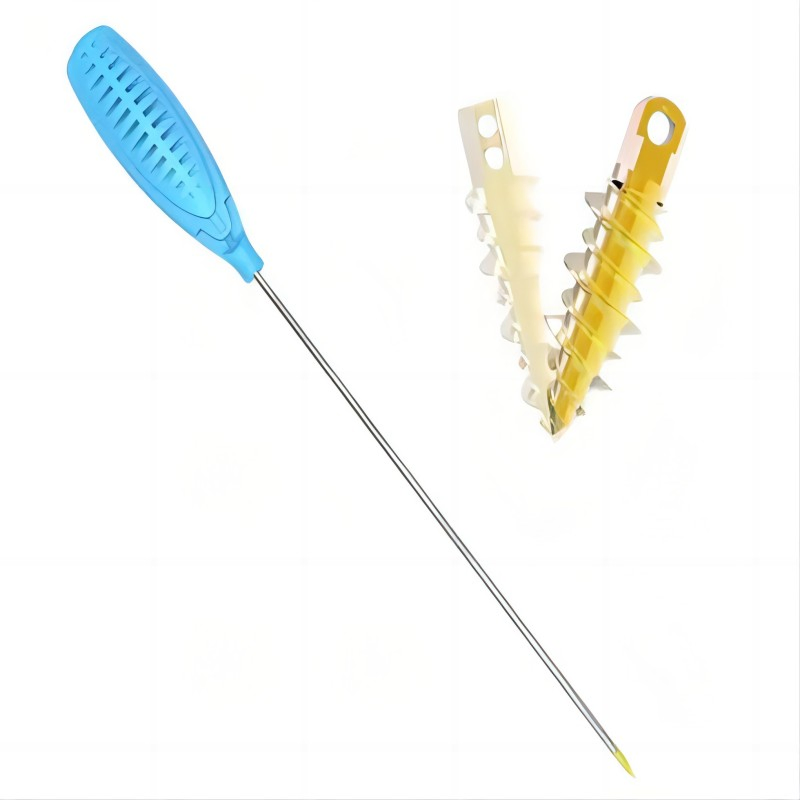

Hexagon Drive Easy operation, multi-angle implantation, more flexible. Can be implanted twice during operation.
Edge Design Special edge design of suture hole on the head of anchor to reduce friction during surgery.
Titanium Alloy Material Excellent biocompatibility for long-term clinical safety.

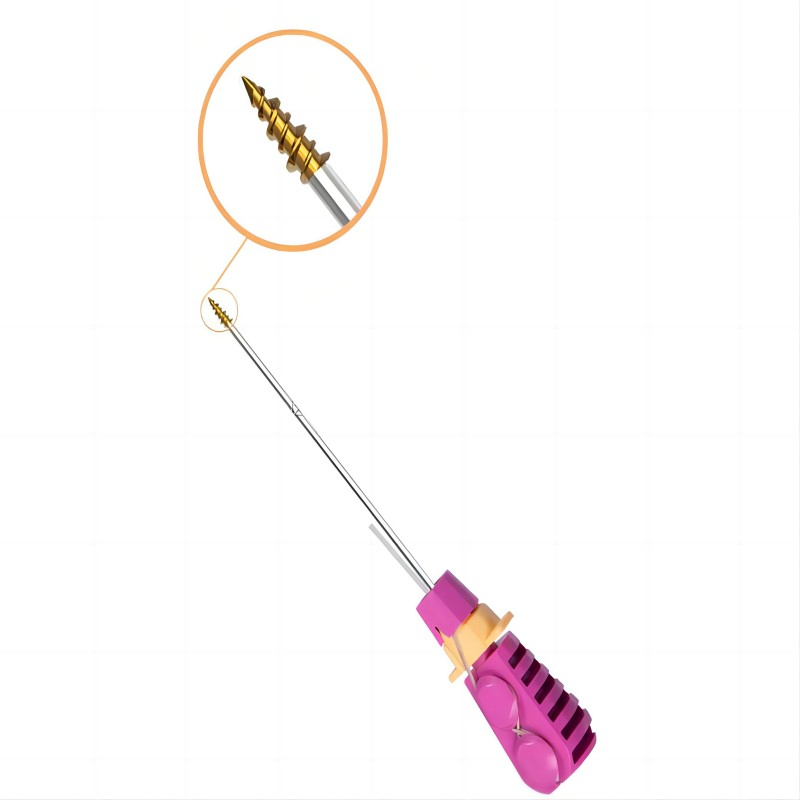

Anchor Head Sharp Design No need to pre-drill, making it easier to implant directly.
High and Low Double Thread Stronger torsional strength and pull-out resistance; quicker screw-in and shorter operation time.
Medical Tips
Scope of Use

Suture Anchors are surgical implants used for the attachment of soft tissues to bone e.g. ruptured tendons and ligaments. Suture anchors are usually composed of the anchor, a suture and the interface between anchor and suture called 'eyelet'. They come in different types or configurations, designs, sizes and materials.

Composition Characteristics

The suture is made of ultra-high molecular weight polyethylene and polyester composite braid with better mechanical properties. It has a better feel and is more convenient to operate.

Surgical Instrument Suture Anchor Arthroscopy
Surgical Instrument Suture Anchor Arthroscopy Surgical Instrument Suture Anchor Arthroscopy Surgical Instrument Suture Anchor Arthroscopy Surgical Instrument Suture Anchor Arthroscopy Surgical Instrument Suture Anchor Arthroscopy Surgical Instrument Suture Anchor Arthroscopy
Frequently Asked Questions
What are the primary applications for these suture anchors?
They are primarily used for joint tendon repair, reconnecting soft tissues like ruptured tendons and ligaments to the bone in orthopedic procedures.
Is pre-drilling required before implantation?
Due to the sharp design of the anchor head, these anchors generally do not require pre-drilling, which simplifies the surgical process.
What material is used for the anchor and suture?
The anchor is made of high-quality Titanium alloy for biocompatibility, while the suture consists of ultra-high molecular weight polyethylene and polyester composite braid.
How does the double thread design benefit the surgery?
The high and low double thread design provides stronger torsional strength and higher pull-out resistance, while also allowing for quicker screw-in time.
Are different sizes available for different joints?

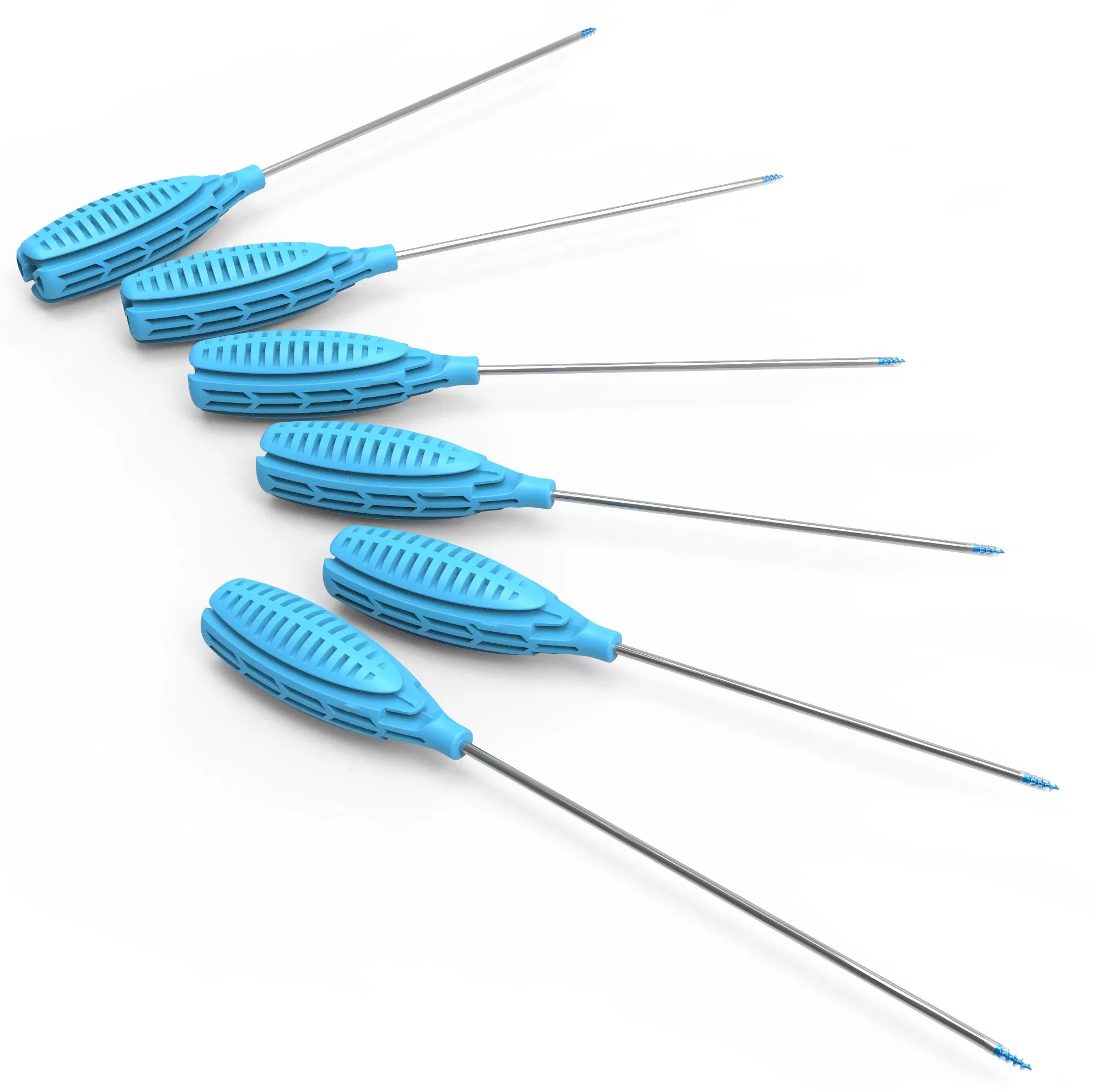

Yes, we offer multiple specifications ranging from φ2.0mm to φ6.5mm in diameter to accommodate various clinical requirements.
